1.27mm Pitch Male Pin Header Connector

  • Model: KLS1-207C
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

1.27mm Pitch Pin Header Connector

Order Information
KLS1-207C-1.00-1-XX-S-L1*L2*L3-G0
Plastics Height:1.00、1.50、1.70、2.00、2.50mm
1-Single layer  2-Double layer
XX-Total pin number  (No.of 2~100pin)

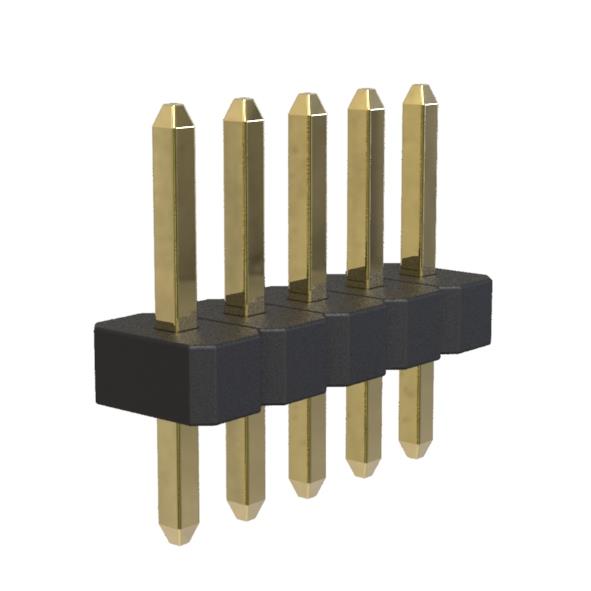

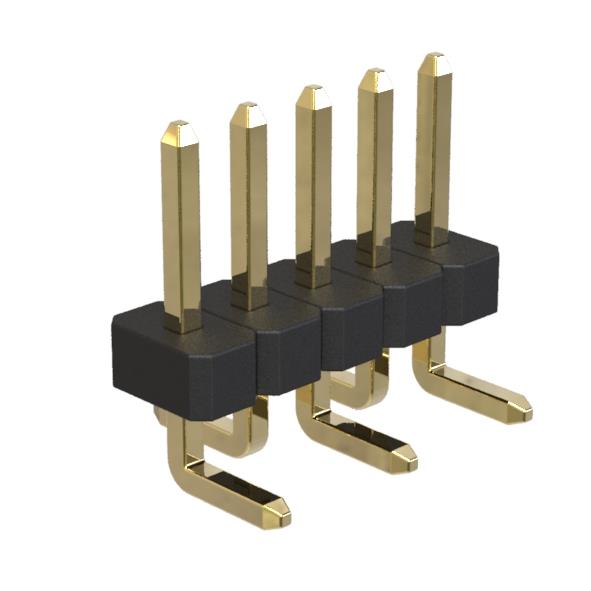

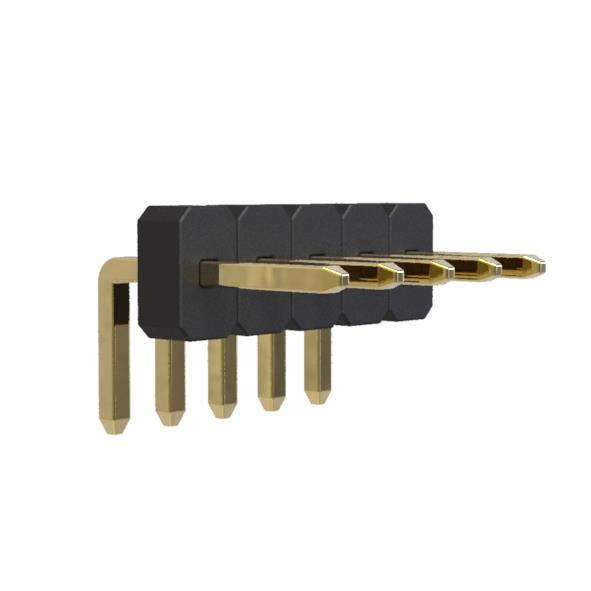

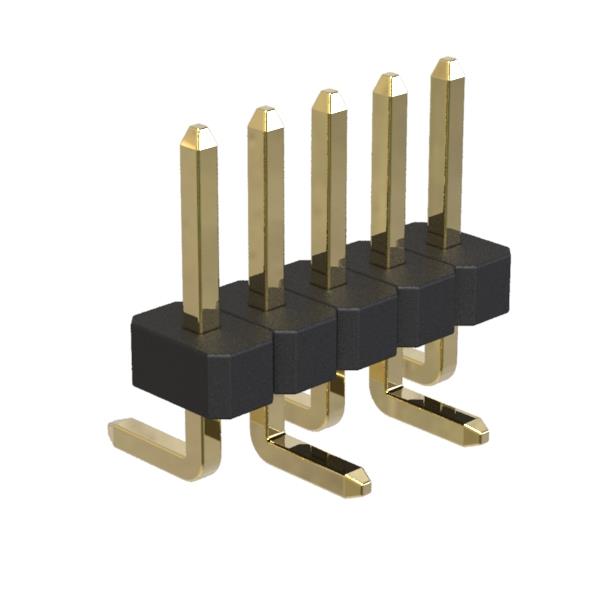

S-Straight Pin  R-Right Angle Pin  T-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash   G1=1u” Gold  G10=10u” Gold  G15=15u” Gold   G30=30u” Gold

Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
