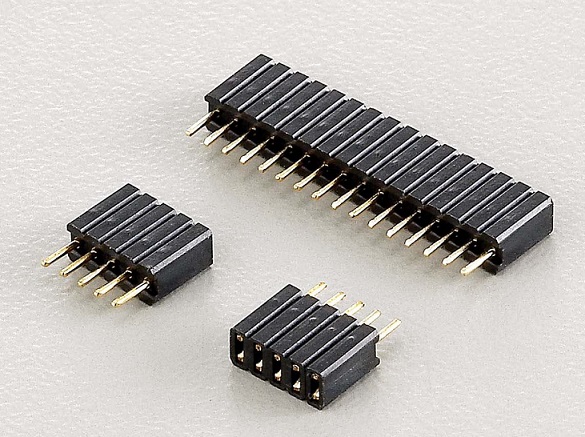

1.27mm Pitch Female Header Connector Height 8.5mm

Order Information
KLS1-208C-8.5-1-XX-S-B
Height: 8.5mm
1-Single layer
XX-Total pin number  (No.of 1~40pin)
S-Straight Pin
Material_B=PA6T  C=LCP

Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC

KLS1-208C-8.5.pdf
