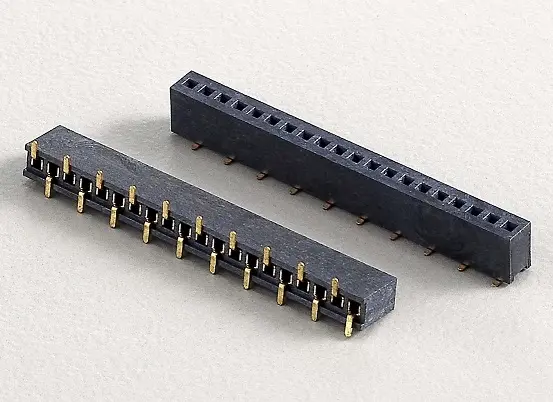

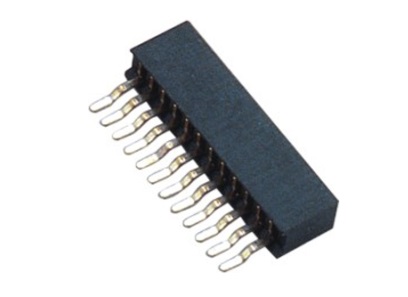

1.27mm Pitch Female Header Connector Height 5.7mm

Order Information
KLS1-208C-5.7-1-XX-T1-L1xL2-N-B-R
Height: 5.7mm
1-Single layer
XX-Total pin number  (No.of 1~50pin)
SMT Pin:T1,T2,RＭ
Size: L1xL2
Material_B=PA6T  C=LCP

Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
