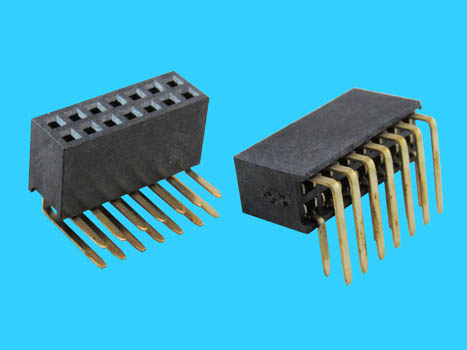

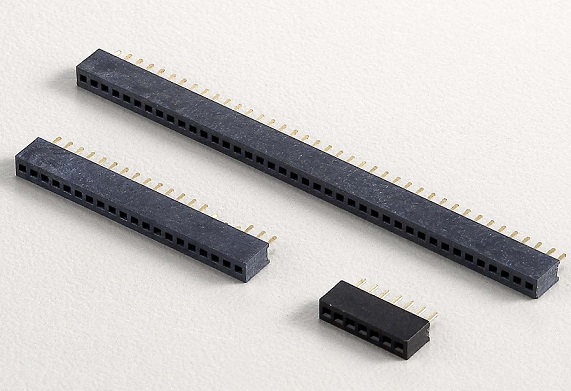

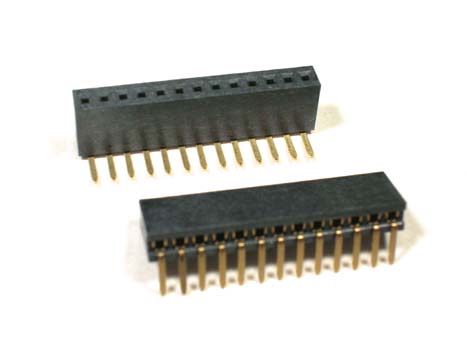

1.27mm Pitch Female Header Connector Height 4.3mm

Order Information
KLS1-208C-4.3-2-XX-T-B
Type: 208C or 208CA
Height: 4.3mm
1-Single layer   2-Double layer
XX-Total pin number  (No.of 2~100pin)
S-Straight Pin  R-Right Angle Pin   T-SMT Pin  RM-SMD pin
Material_B=PA6T  C=LCP

Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.0 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
