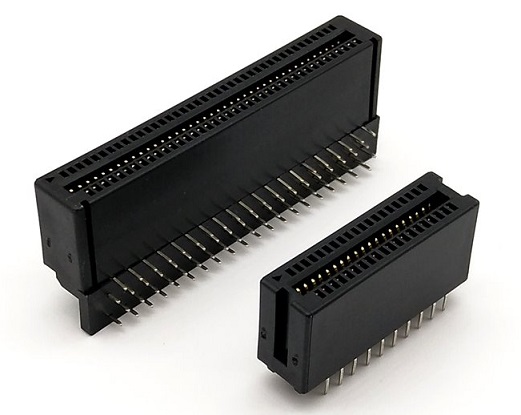

1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type

Order Information
KLS1-503-XX-S-口
XX-No.of 04-68pin

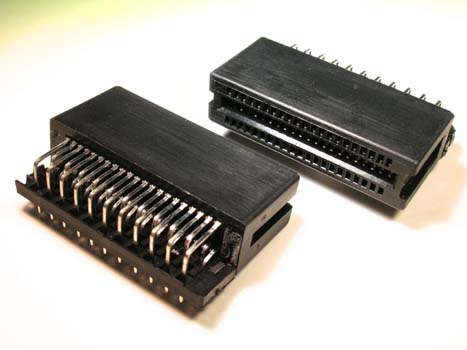

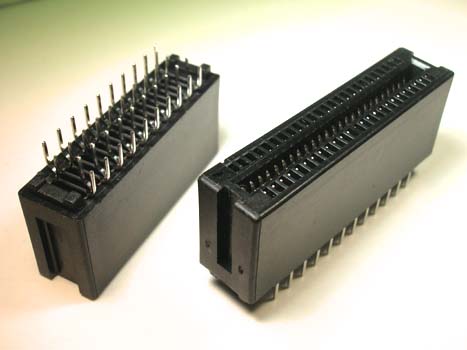

S-Straight pin   R-Right Angle Pin  T1-SMT Pin

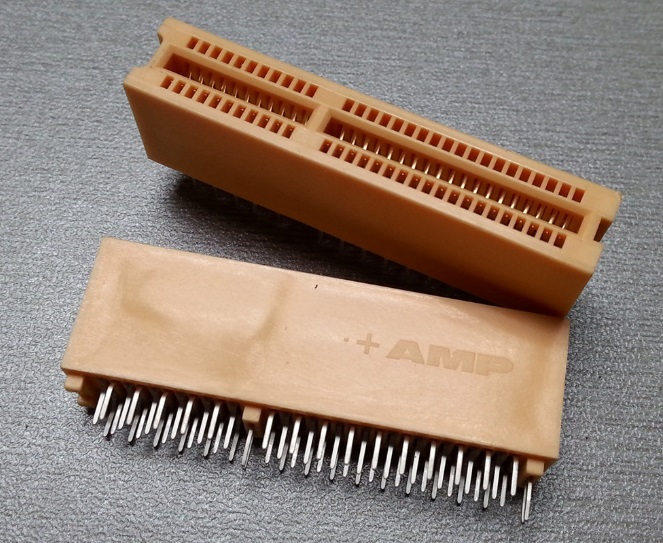

NONE-Black W-White  Y-Yellow

Material:
Housing: Glass filled PBT/PA6T UL94V-0
Contacts: Brass
Plating: Contact gold and Dip Tin over Nickel
Electrical Characteristics:
Current Rating: 1 AMP
Voltage  Rating: 250 VAC
Insulator Resistance: 1000M Ohm min. at DC 500V DC
Contact Resistance: 30m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC

KLS1-503.pdf
