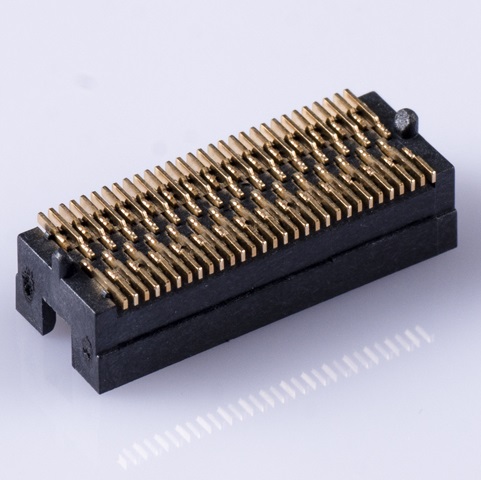

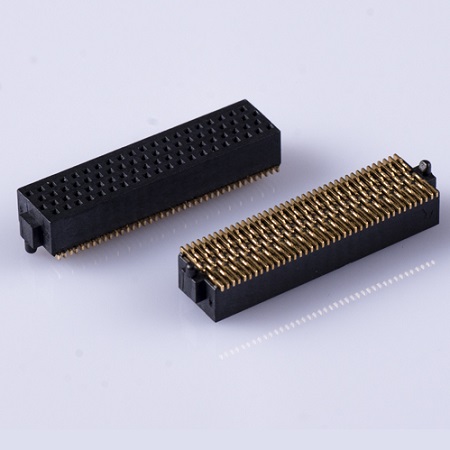

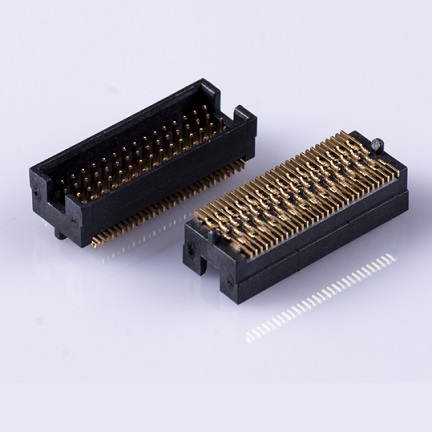

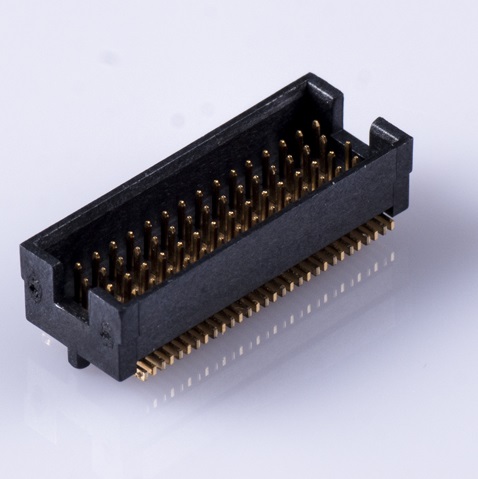

1.27mm Pitch Board to Board Connector

Spcificatons:
Current Rating: 2.0A AC/DC
Voltange Rating: 100V AC/DC
Contact Resistance: Initial Value/30mΩ Max.
After Environmental Tests/60mΩ Max
Insulation Resistance: 300MΩ Min
Withstanding Voltange: 500V AC/Minute
Temperature Range: -55°C To+125°C

KLS1-B0212.pdf
