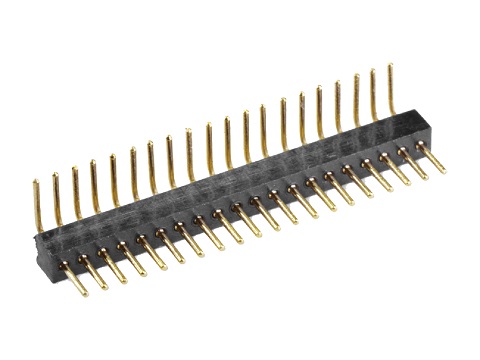

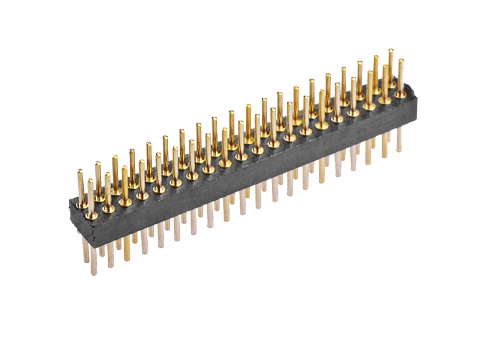

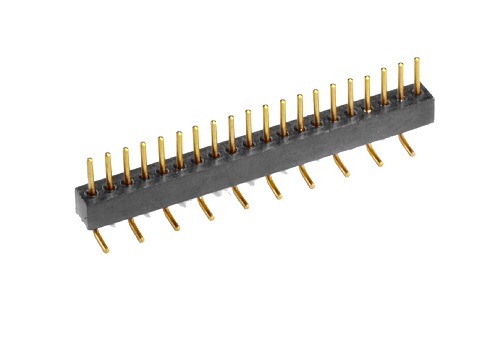

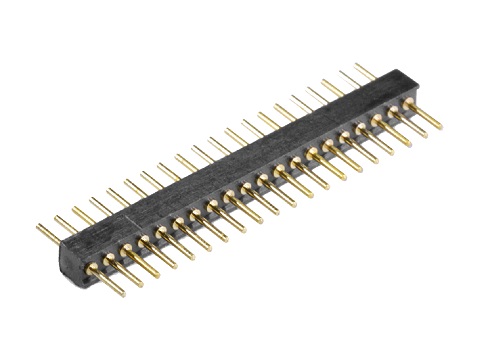

1.27×1.27mm IC Swiss Round Pin Header Connector

Order Information
KLS1-209XC-2.2-1-XX-S
Height:2.2mm,1.9mm
1-Single layer   2-Double layer
XX-Total pin number  (No.of 2~100pins)
S-Straight Pin  R-Right Angle Pin   T-SMT Pin

Material:
Housing: 30% Glass filled PPS UL94V-0
Contacts: Brass
Plating: Gold plated over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Voltage Rating: 60V AC/DC
Insulator Resistance: 1000M Ohm min at 100V AC
Contact Resistance: 20m Ohm max
Operating Temperature: -40ºC~+105ºC
