Order Information

KLS7-KPH-02-N-10

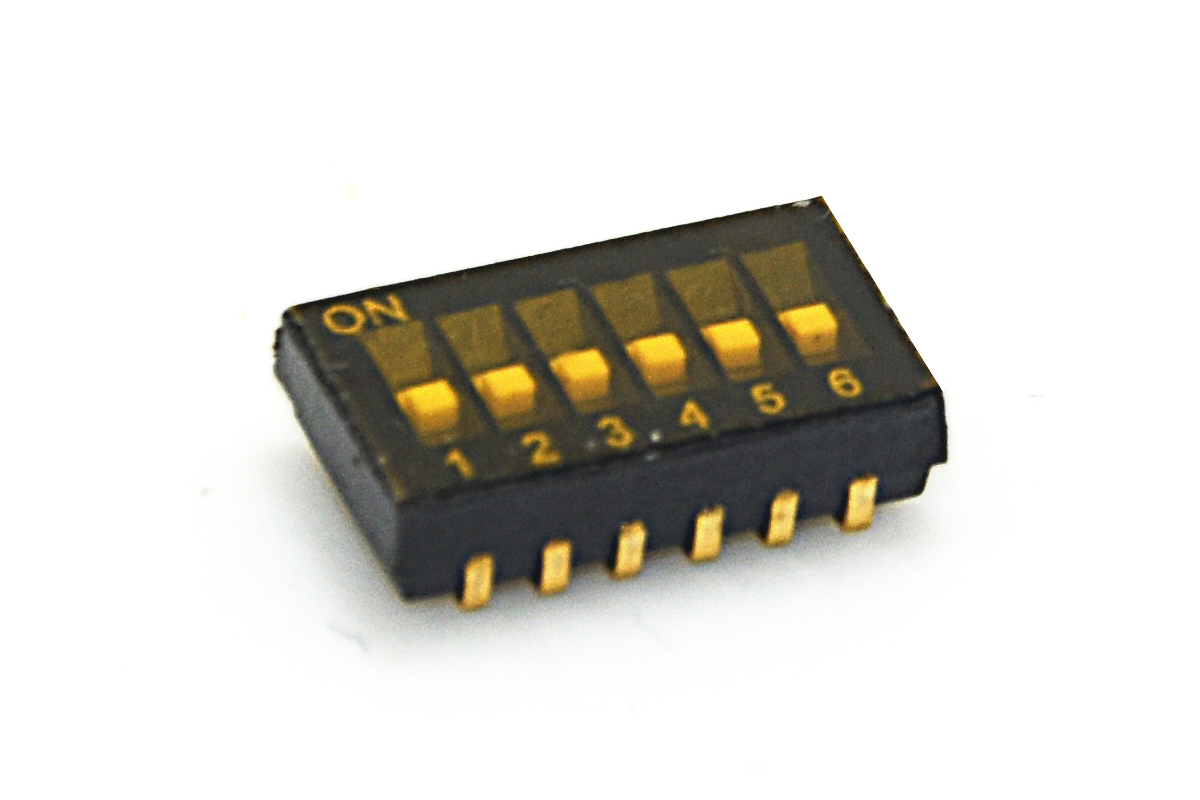

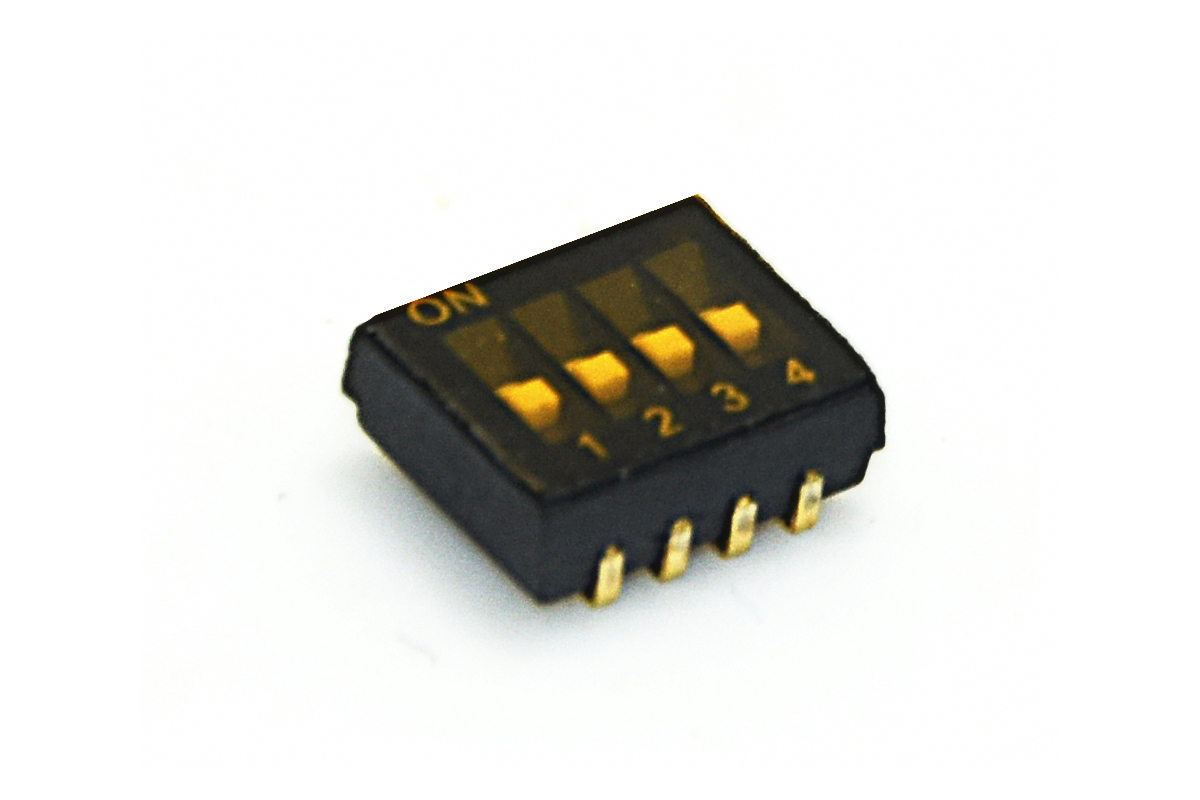

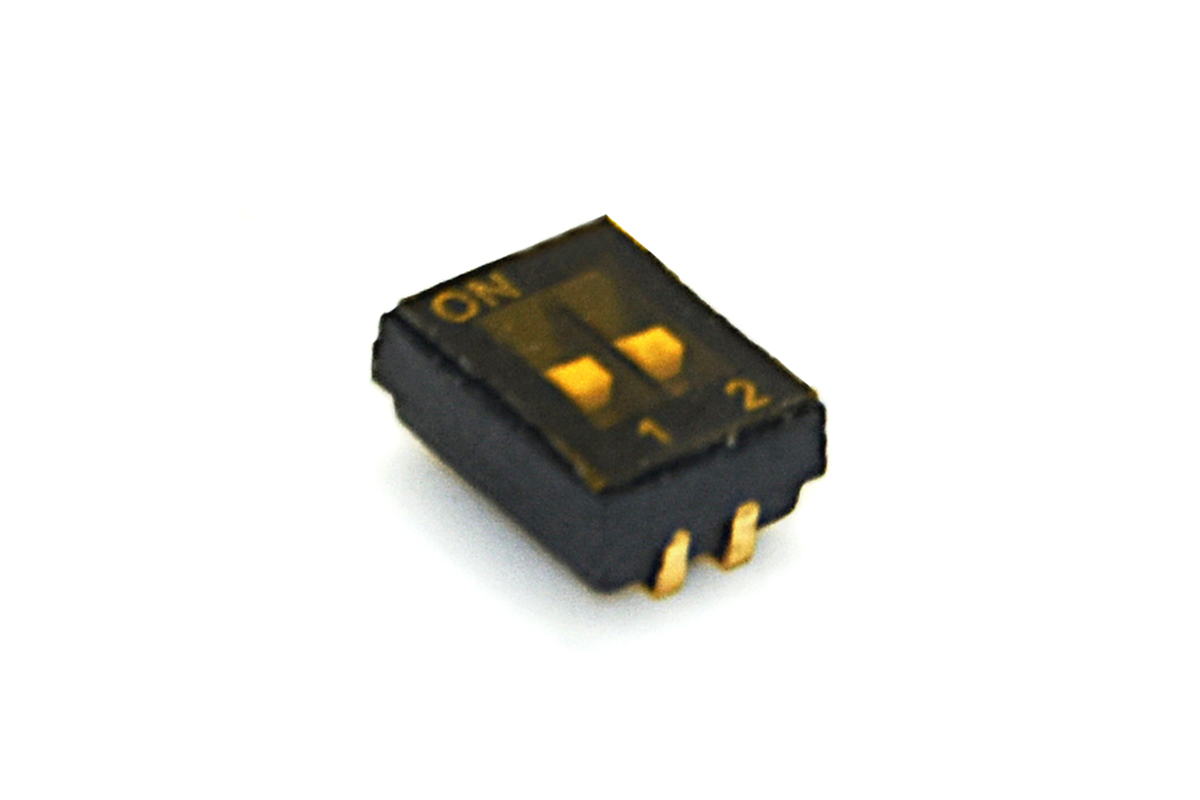

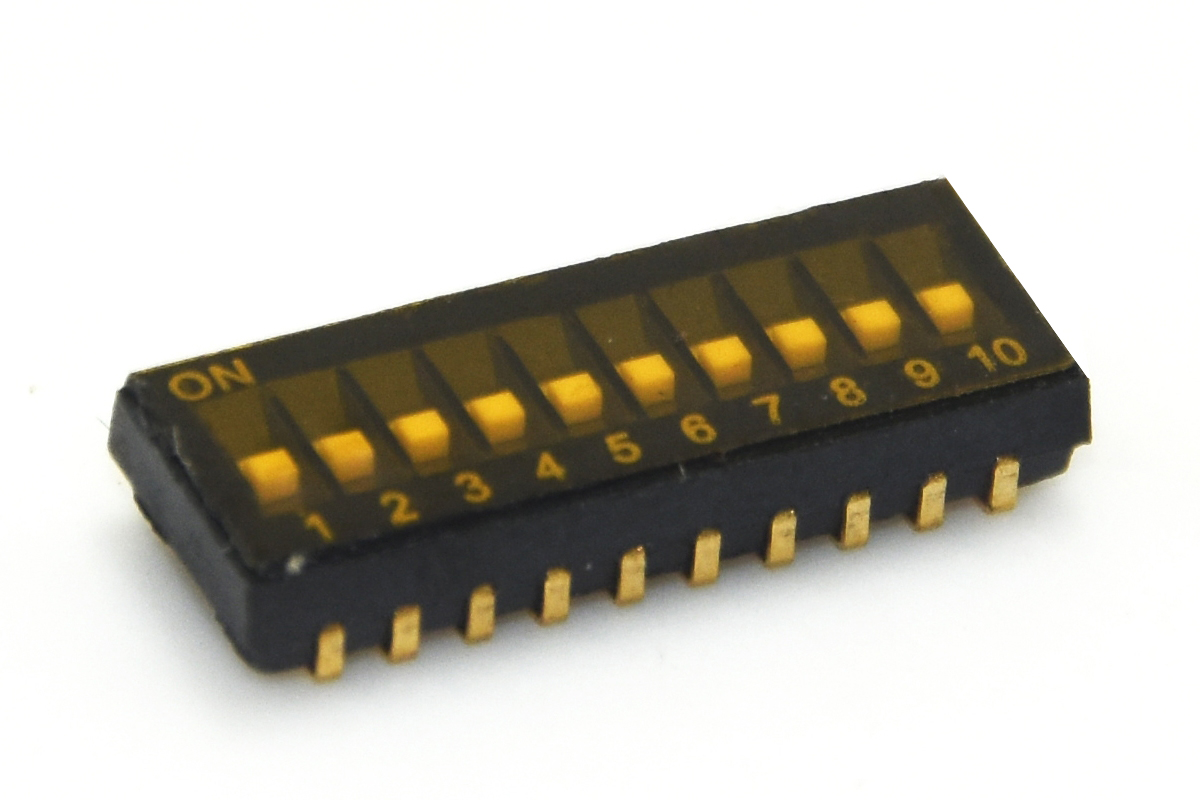

KPH: 1.27mm Half Pitch DIP Switch
02: Number of Pos. 2\3\4\5\6\8\10 Pos.
N: Color Code: N-Black
1: With Sealed
0: Packing Code 0- Tube Packing 1- Tape & Reel Packing

Specifications
Contact Rating: 25 mA at 24VDC(switching)
100 mA at 50VDC(steady state)
Life: 1,000 cycles
Contact Resistance: 100mΩ Max.
Insulation Resistance: 100MΩ at 100VDC Min
Dielectric Strength: 300VAC Min
Storage Tempeeature: -40°C ~ 85°C
Operating Tempeeature: -40°C to 85°C.
Operation Force : 9.8N Max.

Materials
Base & Cover: PPS (UL94V-0)
Actuator: PA46 (UL94V-0).
Contacts: Brass, Gold /Tin Plate
Terminals: Brass, Gold /Tin Plate
Mylar: 0.05mm UL94V-0 Mylar
