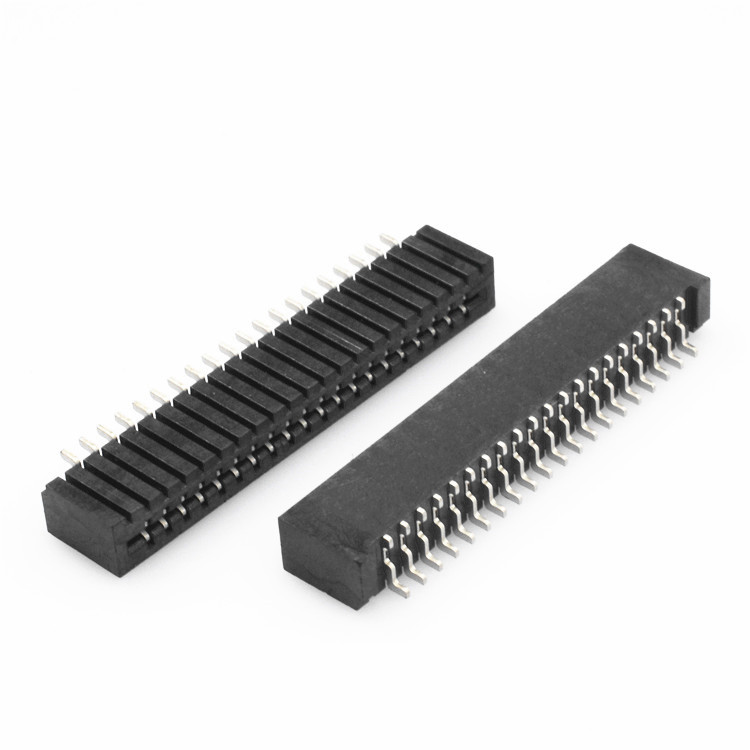

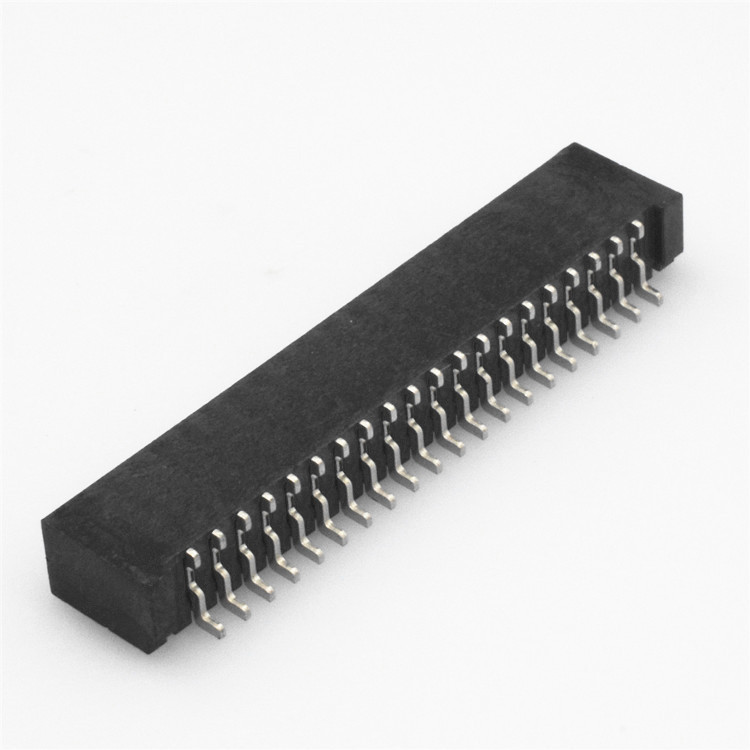

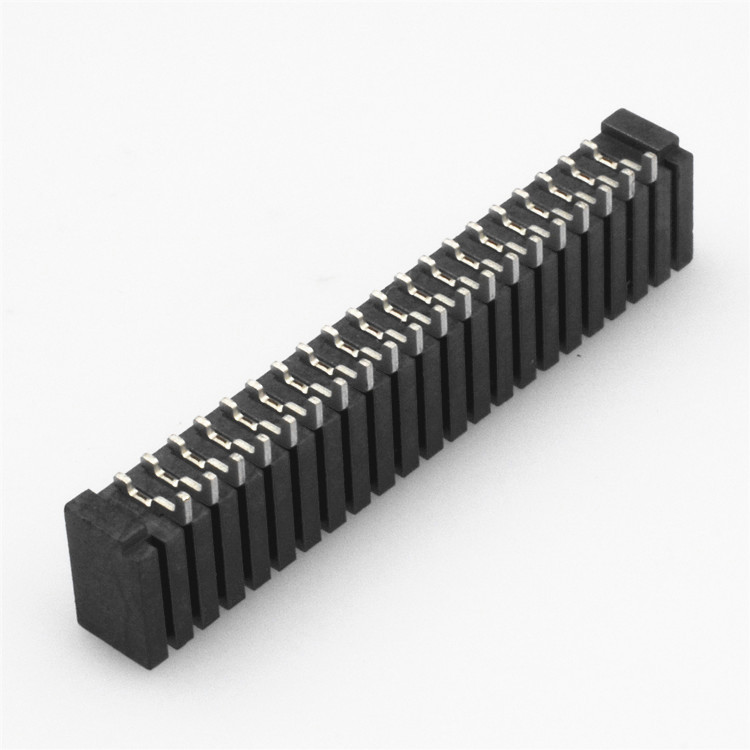

1.25mm SMT Dual Contact NO-ZIF H3.5mm FFC/FPC Connectors

Order Information

L-KLS1-220F- XX -T-R
XX-No.of 04 ~ 33pin
T-SMD Pin
R- Reel Packing    T-Tube Packing

Material:
Housing: LCP UL94V-0
Contact:  Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Withstandingf Voltage: 500 Ｖ
Insulation resistance: 800Ｍ ohm Min
Contact resistance: 40m ohm. max.
Temperature range: -40℃ To +105℃
