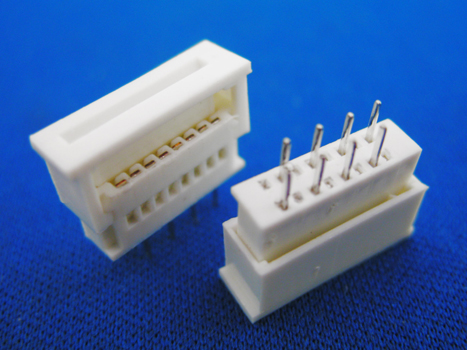

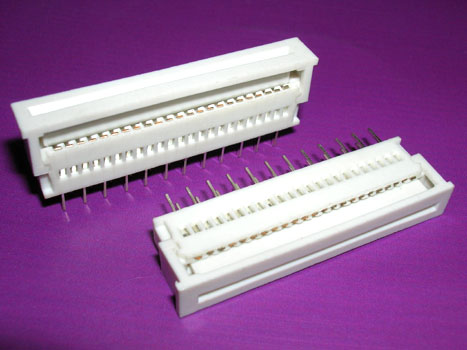

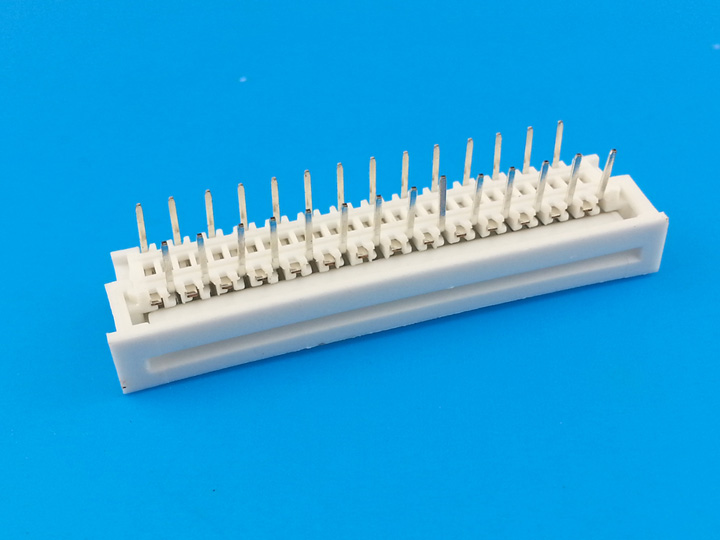

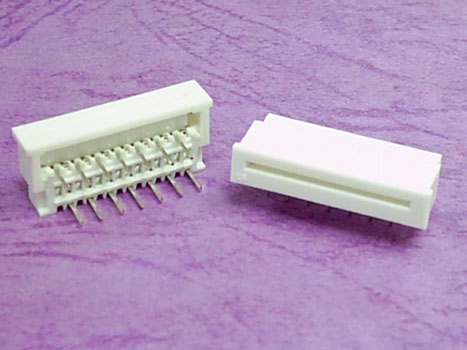

1.25mm Single Contact ZIF-lock Type H10mm FFC FPC Connectors

Order Information
KLS1-220C-XX-S-P
XX-No.of 03 ~ 32pin
S-Straight Pin  R-Right Angle Pin
P-Positive needle   A-Anti needle

Material
Housing: PBT,UL94V-0
Terminal:Copper Alloy
Electrical
Voltage rating: 200 V
Current Rating: 1 A
Withstanding Voltage: 500 V
Insulation resistance: 500MΩ.Min.
Contact resistance: 20 mΩ.Max.
Mechanical
Temp. Range:   -20 ° C ~ + 85 ° C

KLS1-220C.pdf
