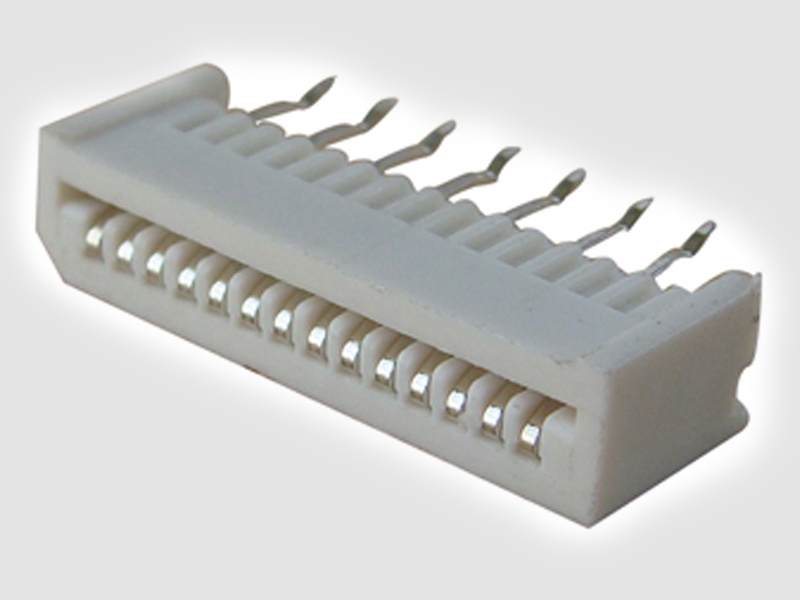

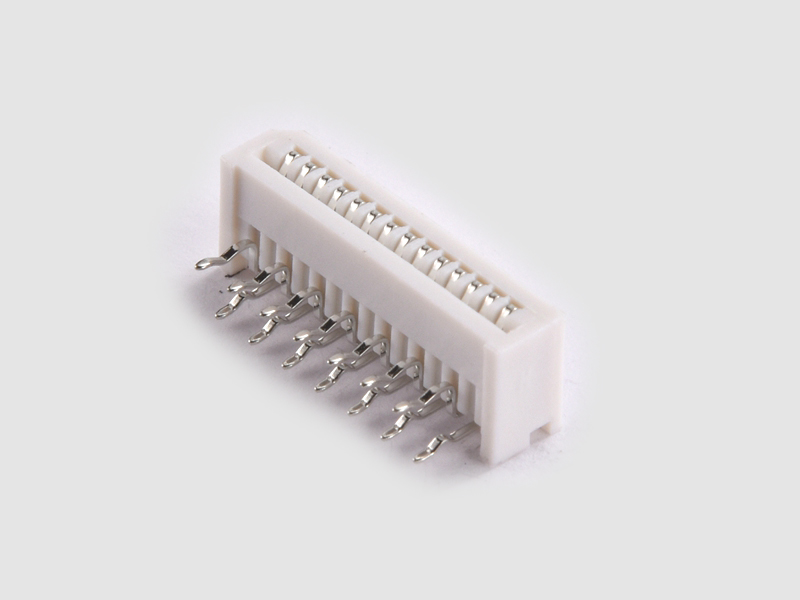

1.25mm Single Contact NO-ZIF Type H=7.5mm FFC FPC Connectors

Order Information
KLS1-220-XX-S-P
XX-No.of 04 ~ 40pin
S-Straight Pin  R-Right Angle Pin
P-Positive needle   A-Anti needle
Material:
Housing: PBT UL94V-0
Contact:  Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 200VAC RMS
Current rating: 1 AMP
Withstandingf Voltage: 500 VAC
Insulation resistance: 5000M ohms Min
Contact resistance: 20m ohm. max.
Temperature range: -40℃ To +105℃
