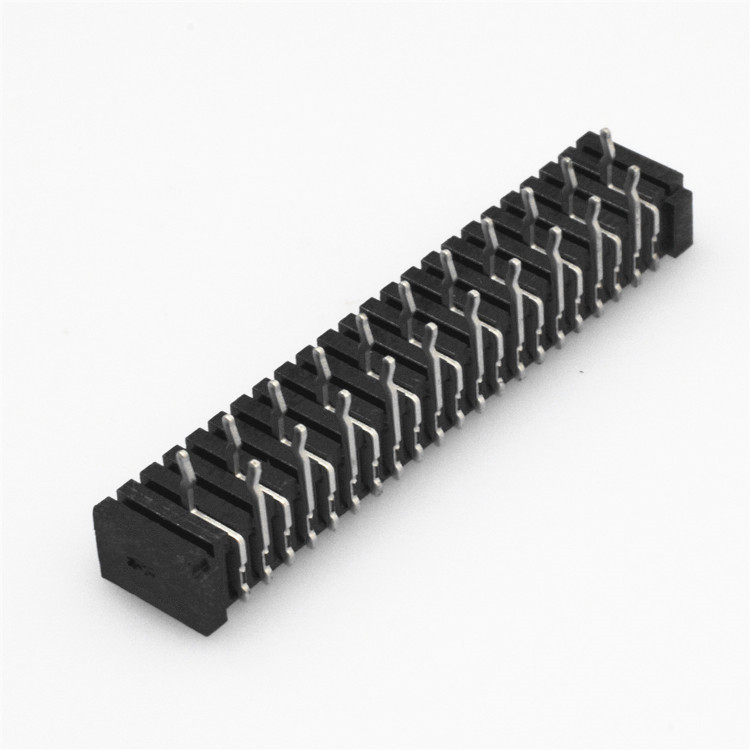

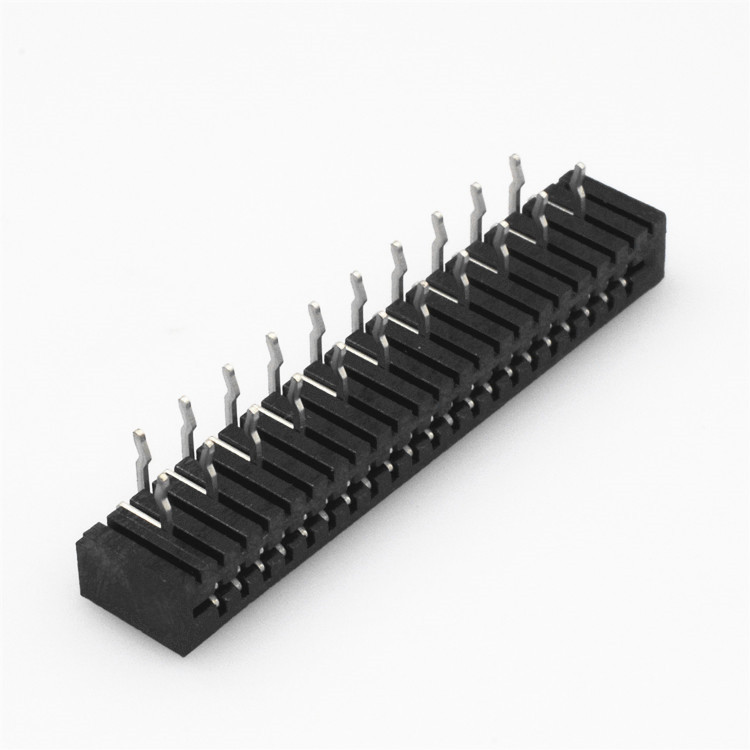

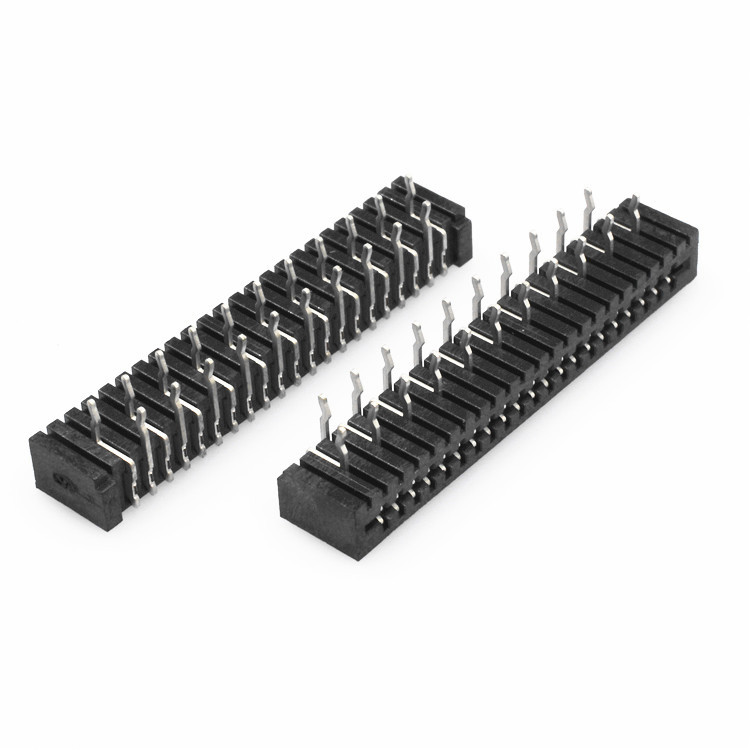

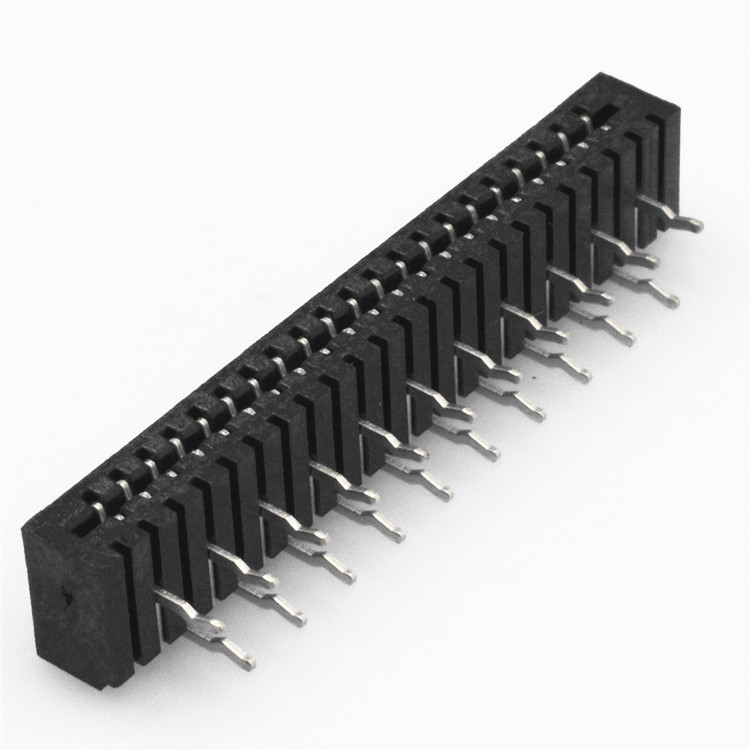

1.25mm Right Angle Pin Dual Contact NO-ZIF Type H5.5mm FFC/FPC Connectors

Order Information
KLS1-220E-XX-R-P
XX-No.of 04 ~ 33pin
R-Right Angle Pin
P-Positive needle   A-Anti-needle

Specifications:

Material
Housing: LCP, UL94V-0
Contact:  Phosphor Bronze,Tin Plated

Electrical
Voltage rating: 50 V
Current rating: 0.5 A
Withstanding  Voltage: 250 V
Insulation resistance: 50 MΩ.Min.
Contact resistance: 20 mΩ.max.

Mechanical
Temp. Range:   -25 ° C ~ + 85 ° C

KLS1-220E.pdf
