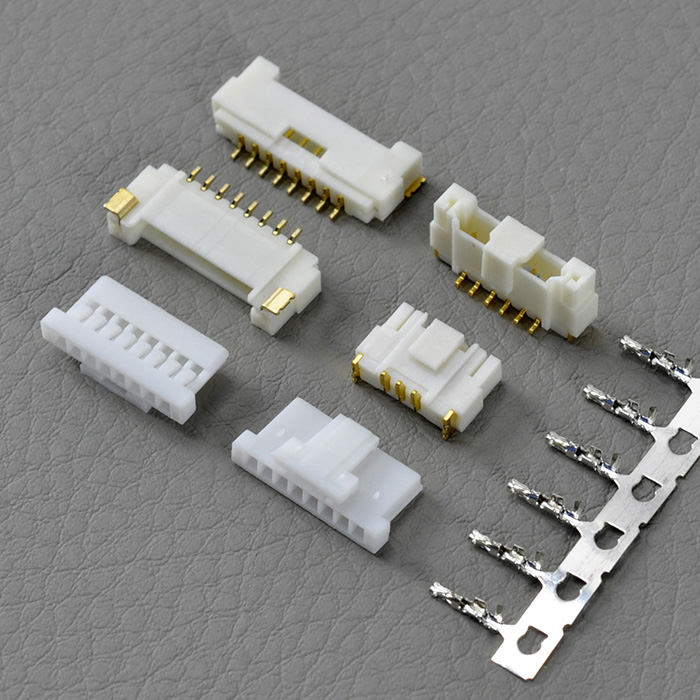

1.25mm Pitch YEONHO 12507HS wire to board connector
- Product Details
1.25mm Pitch YEONHO 12507HS wire to board connector
Order information:
KLS1-XL7-1.25-XX-H
Pitch:1.25mm
XX-No.of 02~30 pins
H1 H2-Housing T-Terminal VM-Vertical SMT Pin RM1 RM2 RM3 RM4-Horizontal SMT Pin T-Terminal
Specifications
◆Material: PA66/PA6T UL 94V-0
◆Contact : Phosphor Bronze
◆Finish : Plated Tin over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:150V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:30mΩ Max.
