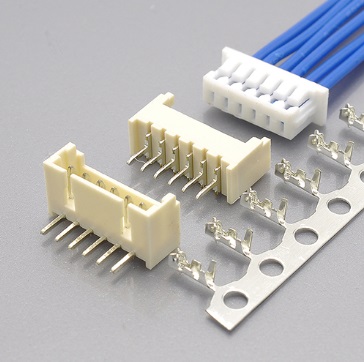

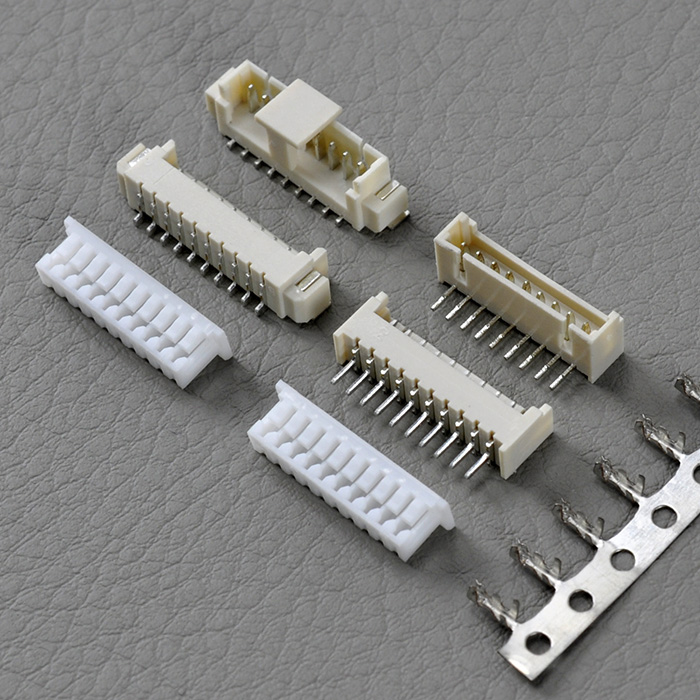

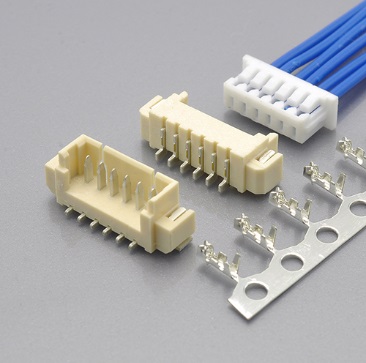

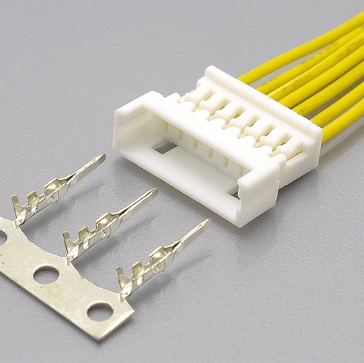

1.25mm Pitch Molex PicoBlade 51021 53047 53048 53398 53261 50079 wire to board connector

Order information:
KLS1-XL1-1.25-XX-H
Pitch:1.25mm
XX-No.of 02~16 pins
H H2-Housing  T T2-Terminal  S-Straight male pin  R-Right angle male pin  VM-Vertical SMT Pin  RM-Horizontal SMT Pin
Specifications
◆Material: PA66/LCP UL 94V-0
◆Contact : Phosphor Bronze
◆Finish : Plated Tin over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:125V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.

KLS1-XL1-1.25.pdf
