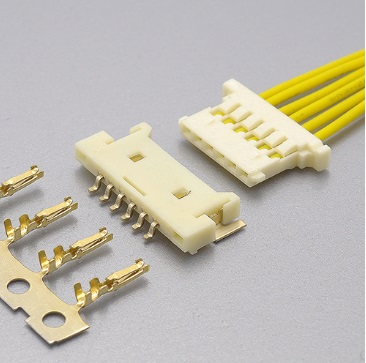

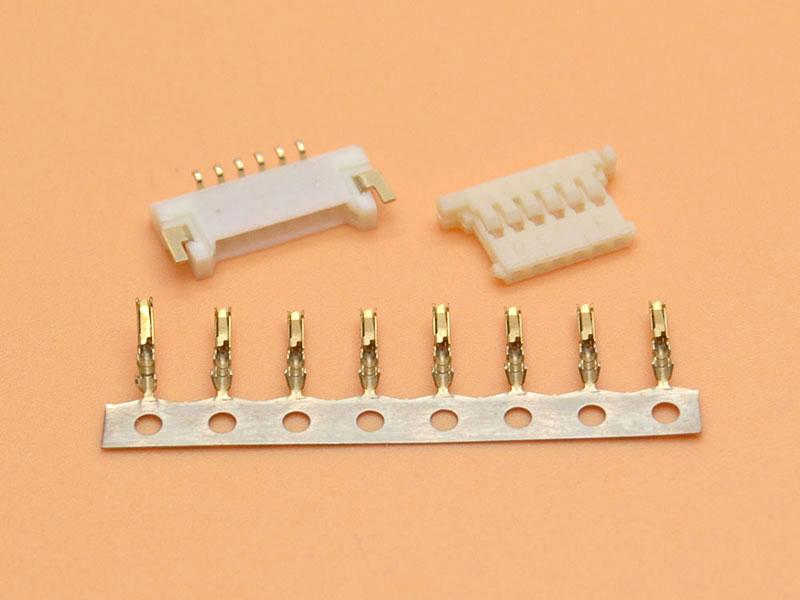

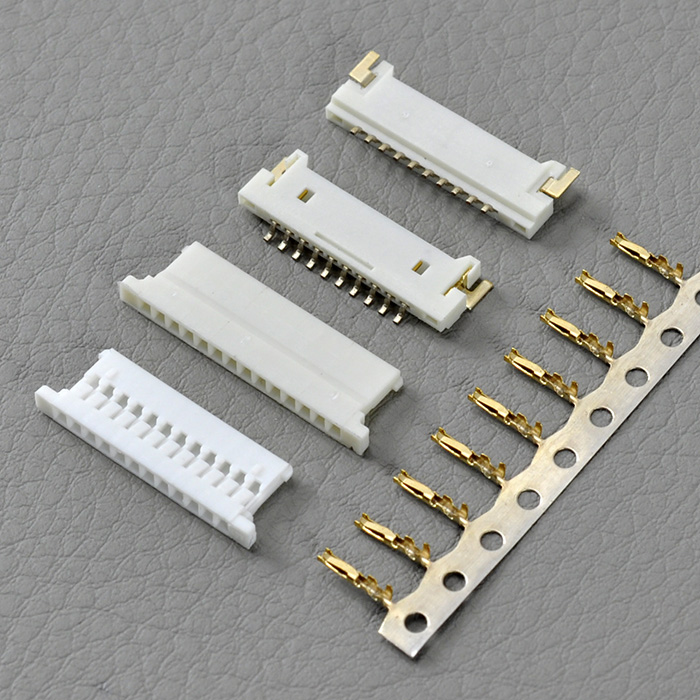

1.25mm Pitch Molex 51146 53780 wire to board connector

Order information:
KLS1-XL3-1.25-XX-H
Pitch:1.25mm
XX-No.of 02~30 pins
H-Housing  T-Terminal  RM-Horizontal SMT Pin
Specifications
◆Material: PA66/PA9T UL 94V-0,White
◆Contact : Brass
◆Finish : Plated Gold  over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:125V AC,DC
◆Temperature range:-40℃~+85℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC/minute
◆Contact resistance:20mΩ Max.

KLS1-XL3-1.25.pdf
