1.25mm Pitch Molex 502380 502382 502386 wire to board connector

  • Model: KLS1-XL9-1.25
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

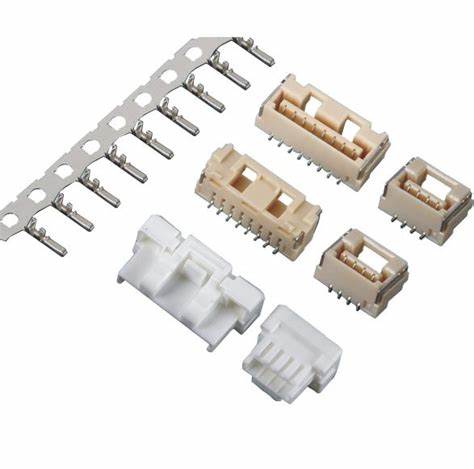

1.25mm Pitch Molex 502380 502382 502386 wire to board connector

Order information:
KLS1-XL9-1.25-XX-H
Pitch:1.25mm
XX-No.of 02~15 pins

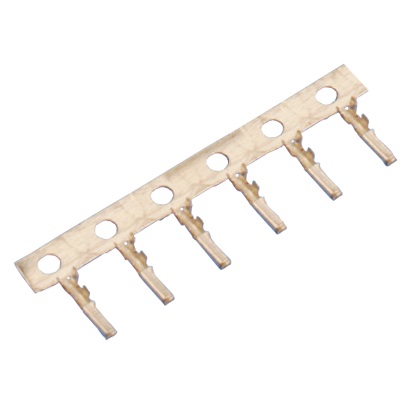

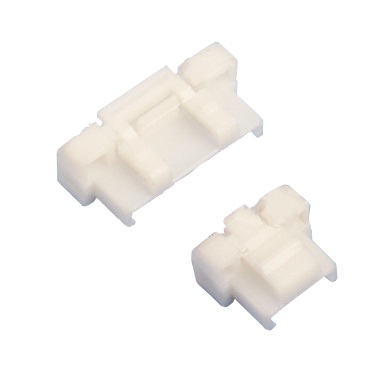

H-Housing  T-Terminal  VM-Vertical SMT Pin  RM-Horizontal SMT Pin
Specifications
◆Material: PA66/LCP UL 94V-0
◆Contact : Phosphor Bronze
◆Finish : Plated Tin over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.
