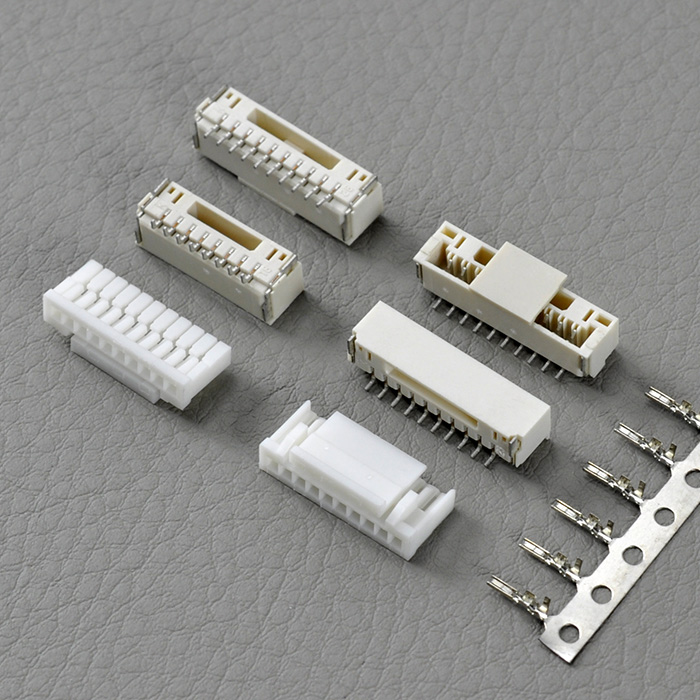

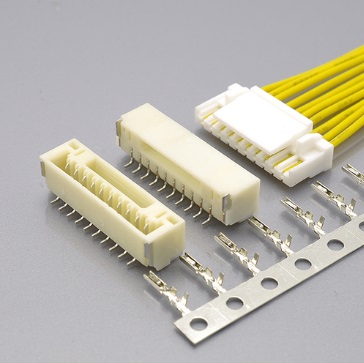

1.25mm Pitch JST GHR wire to board connector

Order information:
KLS1-XL8-1.25-XX-H
Pitch:1.25mm
XX-No.of 02~12 pins
H-Housing  VM-Vertical SMT Pin  RM-Horizontal SMT Pin   T-Terminal
Specifications
◆Material: PA66/PA6T UL 94V-0
◆Contact : Phosphor Bronze
◆Finish : Plated Tin over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:30mΩ Max.

KLS1-XL8-1.25.pdf
