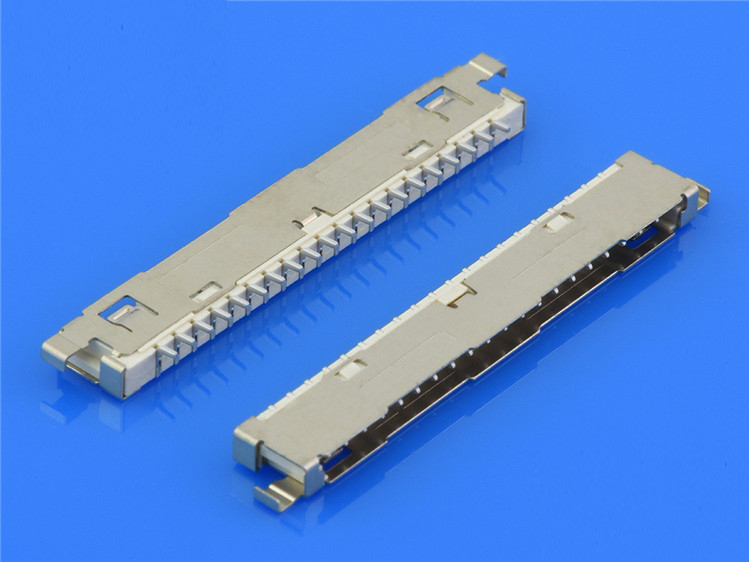

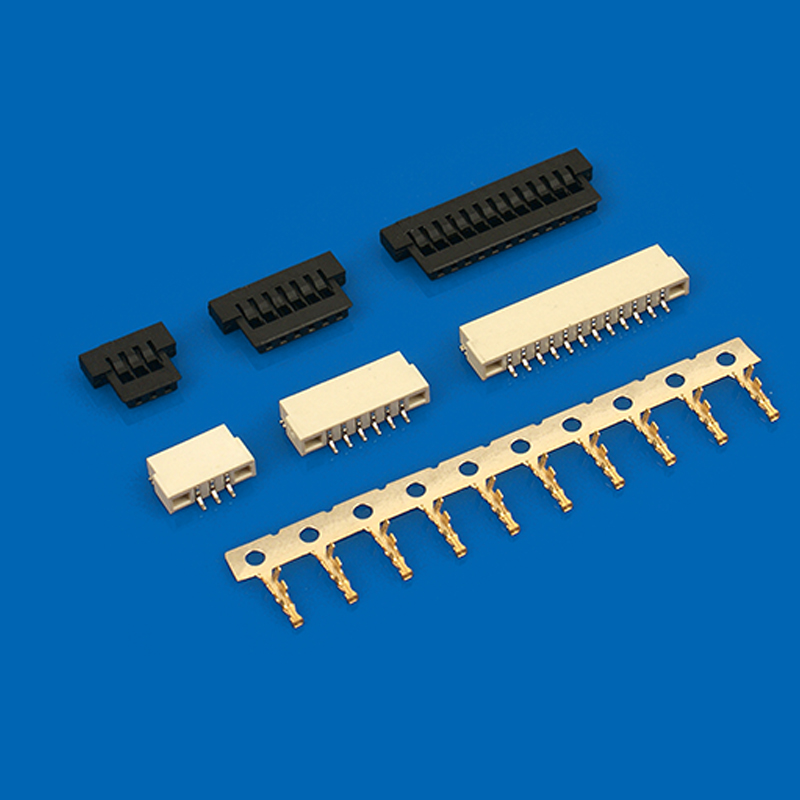

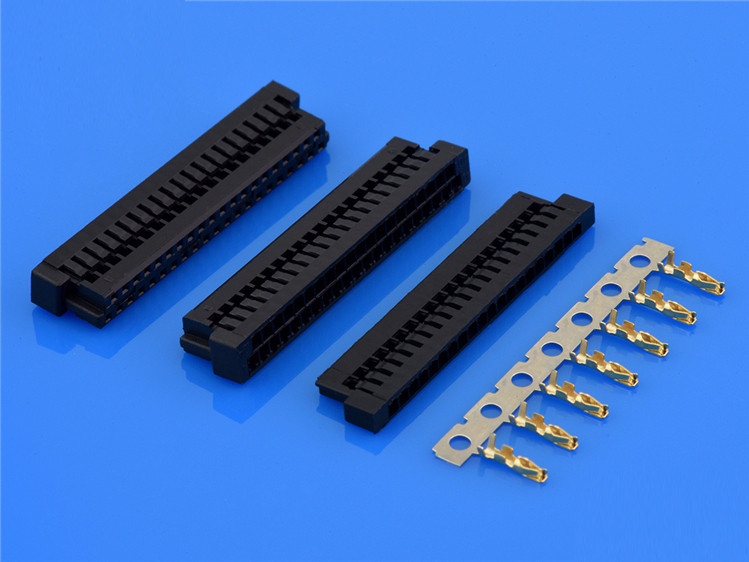

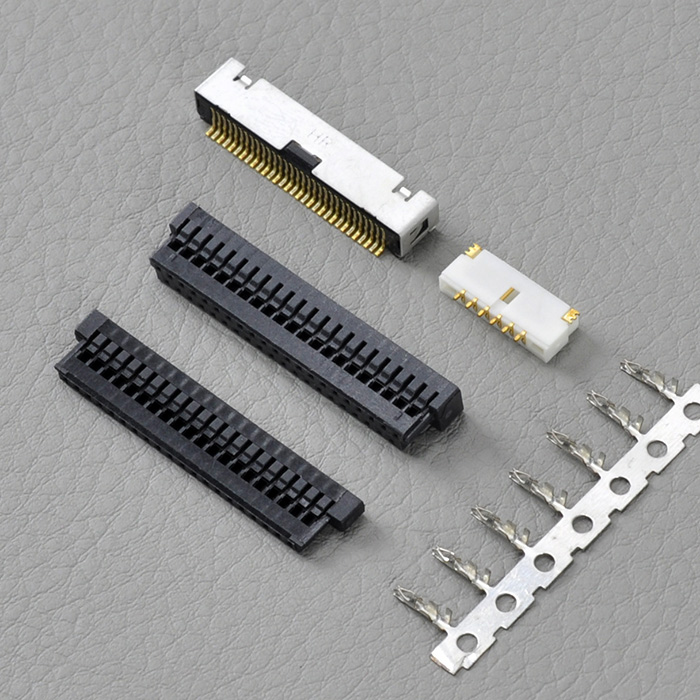

1.25mm Pitch JAE FI-S type wire to board connector
- Product Details
1.25mm Pitch JAE FI-S type wire to board connector
Order information:
KLS1-XL6-1.25-XX-H
Pitch:1.25mm
XX-No.of 02~30 pins
H-Housing T-Terminal RM1 RM2-Horizontal SMT Pin
Specifications
◆Material: PA66/PA6T UL 94V-0
◆Contact : Brass
◆Finish : Plated Gold Flash over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:200V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:100MΩ/Min.
◆Withstanding voltage:500V AC/minute
◆Contact resistance:40mΩ/Max.
