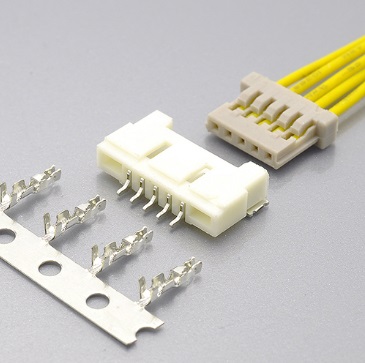

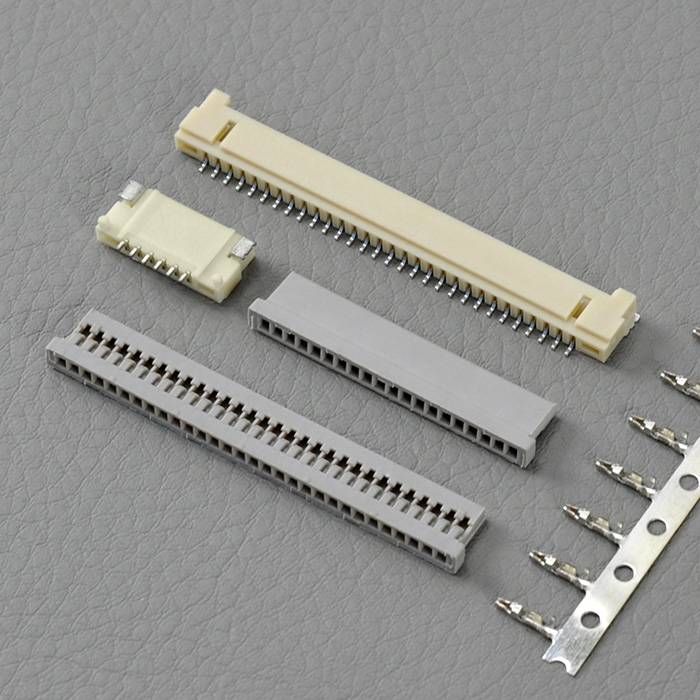

1.25mm Pitch HRS DF14 type wire to board connector
- Product Details
1.25mm Pitch HRS DF14 type wire to board connector
Order information:
KLS1-XL5-1.25-XX-H
Pitch:1.25mm
XX-No.of 02~30 pins
H-Housing T-Terminal RM-SMT Male pin
Specifications
◆Material: PA66/PA6T UL 94V-0,White
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:150V AC,DC
◆Temperature range:-40℃~+85℃
◆Insulationresistance:500MΩ Min.
◆Withstanding voltage:500V AC/minute
◆Contact resistance:30mΩ Max.
