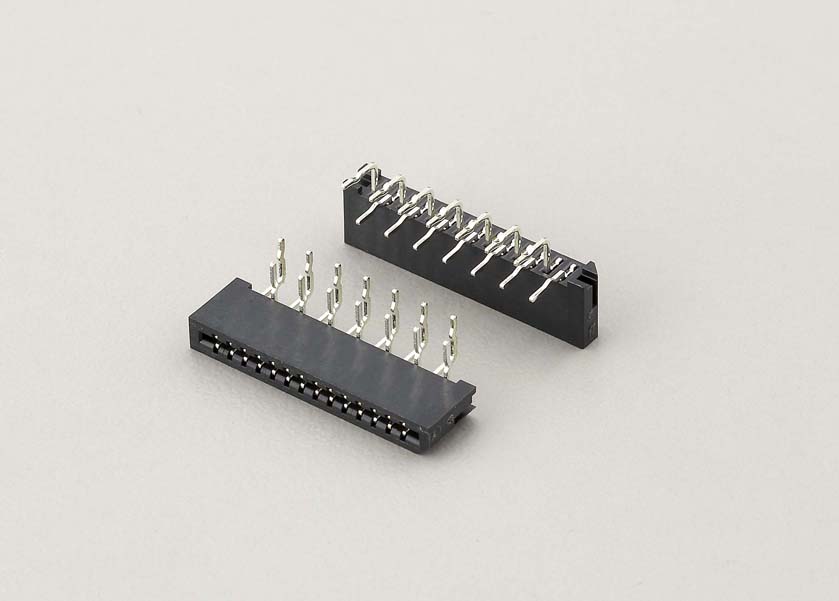

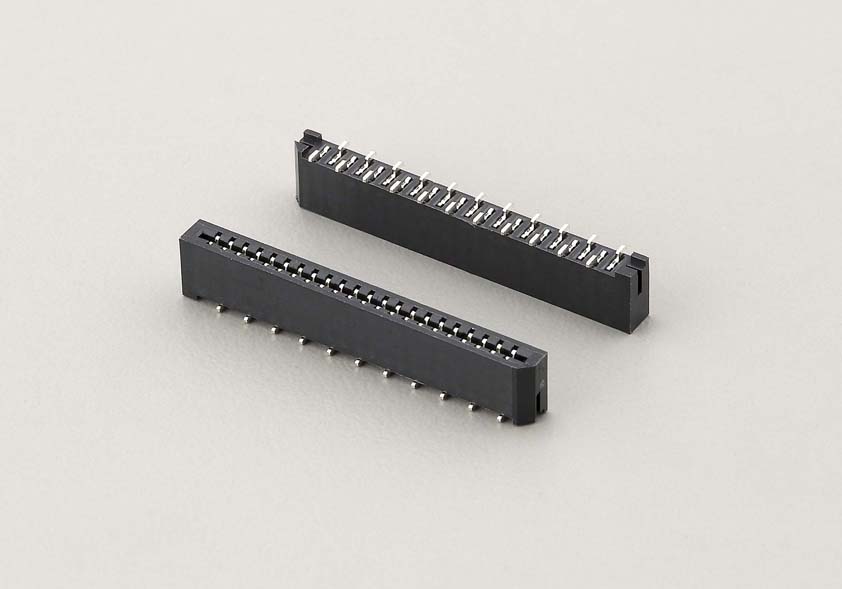

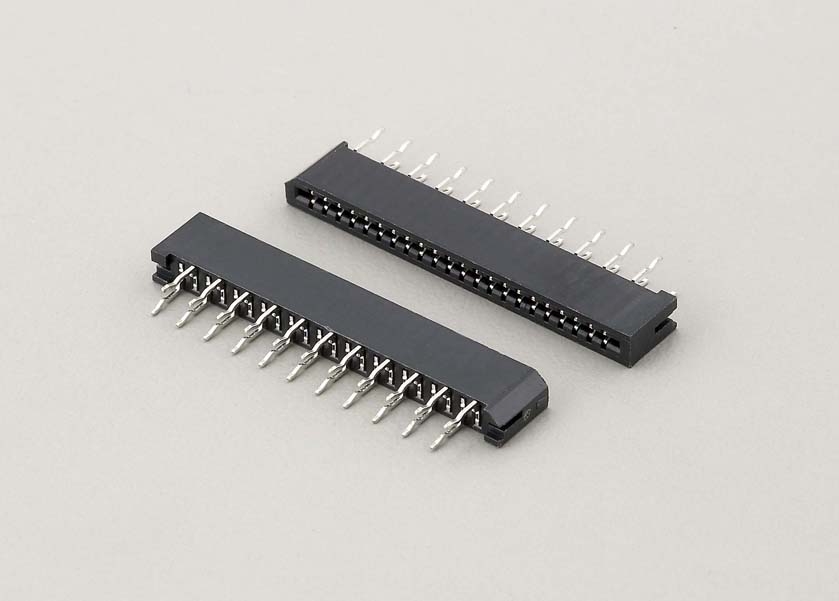

1.25mm Dual Contact NO-ZIF Type H5.5mm FFC FPC Connectors

Order Information
KLS1-220B-XX-R-P-T
XX-No.of  04 ~ 36pin
R-Right angle Pin  S-Straight Pin  T-SMD Pin
P-Positive needle   A-Anti-needle
T-Tube pack  R-Rell pack

Material
Housing: LCP, UL94V-0
Contact:  Phosphor Bronze,Tin Plated

Electrical
Voltage rating: 50 V
Current rating: 0.5 A
Withstanding  Voltage: 500 V
Insulation resistance: 1000 MΩ.Min.
Contact resistance: 30 mΩ.max.

Mechanical
Temp. Range:   -25 ° C ~ + 85 ° C

KLS1-220B.pdf
