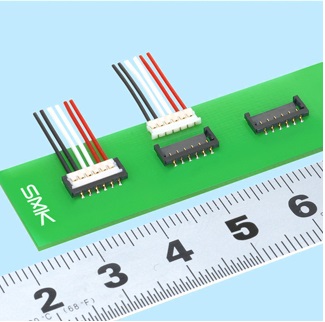

1.20mm Pitch SMK CPL wire to board connector
- Product Details
1.20mm Pitch SMK CPL wire to board connector
Order information:
KLS1-XL4-1.20-XX-H-W
Pitch: 1.20mm
XX-02~06 pins
H=Housing M=SMT Male pin T=Terminal
Color:W-White
Specifications
◆Material: PA66/LCP UL 94V-0
◆Contact : Phosphor Bronze
◆Finish : Plated Tin over Nickel
◆Current rating:1A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:200V AC minute
◆Contact resistance:20mΩ Max.
