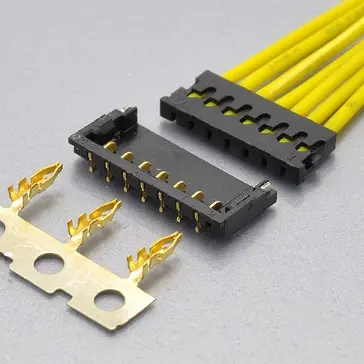

1.20mm Pitch MOLEX 78171 78172 wire to board connector

Order information:
KLS1-XL1-1.20-XX-H-B
Pitch: 1.20mm
XX-No.of 02~08 pins
H-Housing  M1 M2-SMT Male pin  T-Terminal
Color:B-Black

Specifications
◆Material: PA46/PA9T UL 94V-0,Black
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:1.5A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.

KLS1-XL1-1.20.pdf
