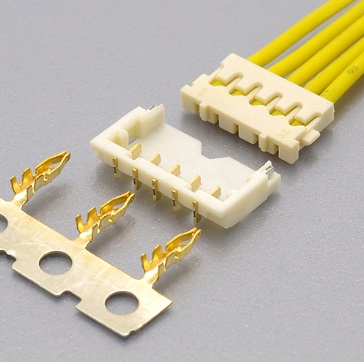

1.20mm Pitch JST ACH wire to board connector
- Product Details
1.20mm Pitch JST ACH wire to board connector
Order information:
KLS1-XL2-1.20-XX-H-W
Pitch: 1.20mm
XX-02~08 pins
H-Housing M1-SMT Male pin T-Terminal
Color: W-White
Specifications
◆Material: Nylon46/ PA9T UL 94V-0,Black
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:1.5A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.
