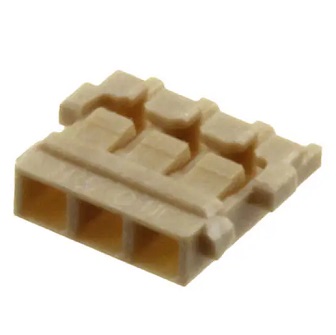

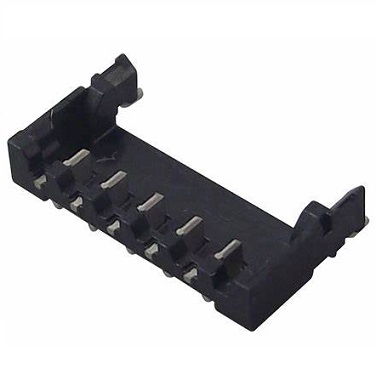

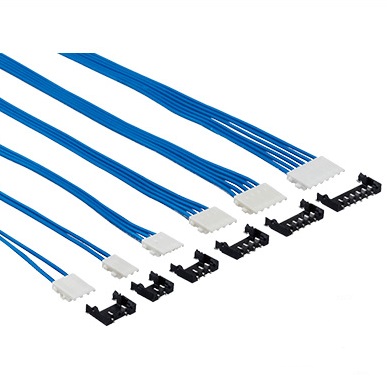

1.20mm Pitch Hirose DF57 wire to board connector

Order information:
KLS1-XL3-1.20-XX-H-B
Pitch: 1.20mm
XX-02~06 pins

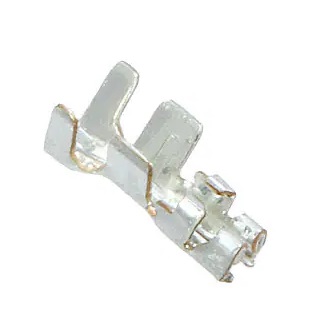

H=Housing  HA=Housing   M=SMT Male pin  T=Terminal
Color:B-Black  W-White
Specifications
◆Material: PBT/ LCP UL 94V-0,Black
◆Contact : Phosphor Bronze
◆Finish : Plated Tin over Nickel
◆Current rating:2A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.

KLS1-XL3-1.20.pdf
