1.0mm ZIF SMT H2.5mm lower/upper contacts FPC/FFC connector

  • Model: KLS1-1240N-2.5 & KLS1-1240Q-2.5
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

1.0mm ZIF SMT H2.5mm lower/upper contacts 4-40P FPC/FFC connector

Order Information
KLS1-1240N-2.5-XX-T-U-R
XX-No.of 04 ~ 40pin
T-Horizontal SMT
U-Upper Contact

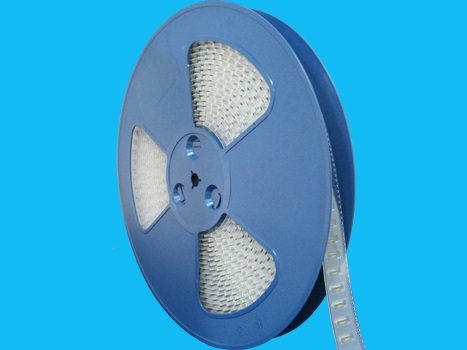

R-Reel T-Tubes

Order Information
KLS1-1240Q-2.5-XX-T-L-R
XX-No.of 04 ~ 40pin
T-Horizontal SMT
L-Lower Contact
R-Reel T-Tubes

Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: Brass, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.4A
Rated voltage:50V
Withstand voltage:200V
Contact resistance:≤20mΩ
Insulation resistance:500MΩ
Operating Temperature: -20℃ To +85℃
