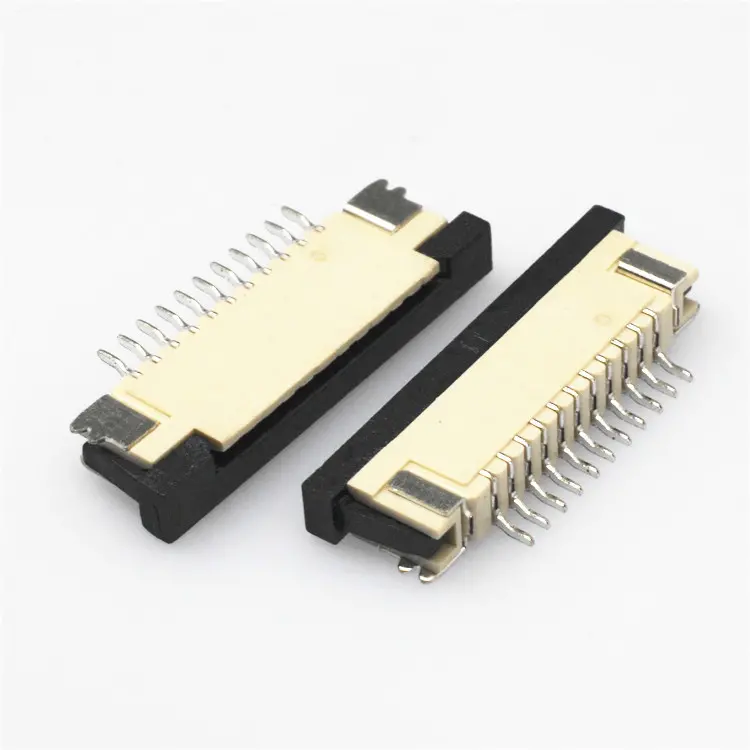

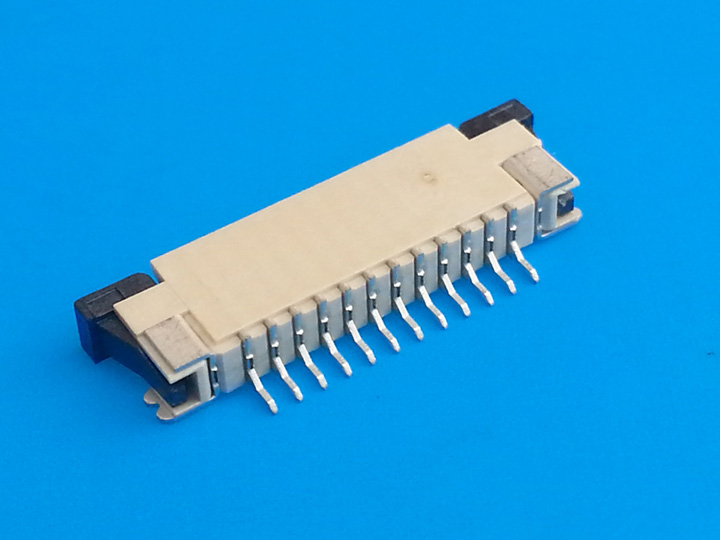

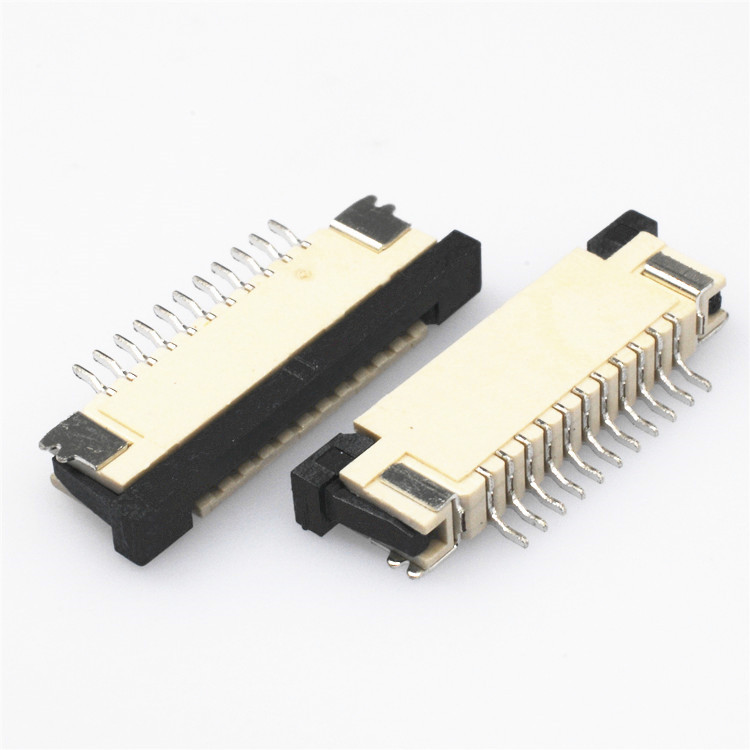

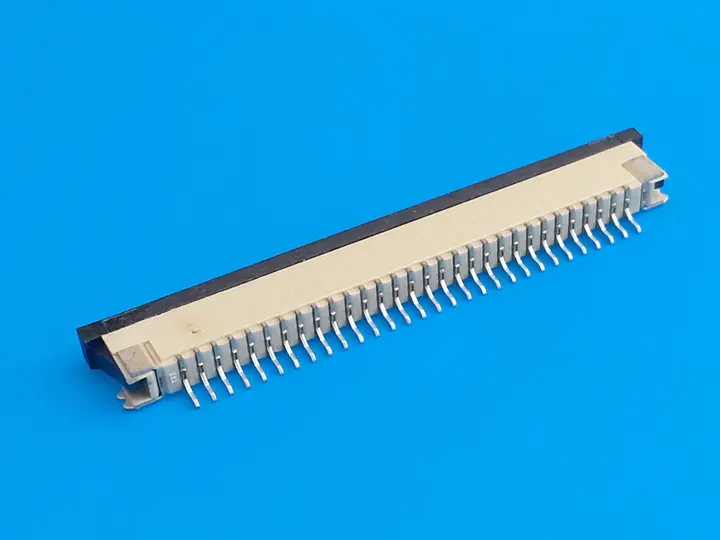

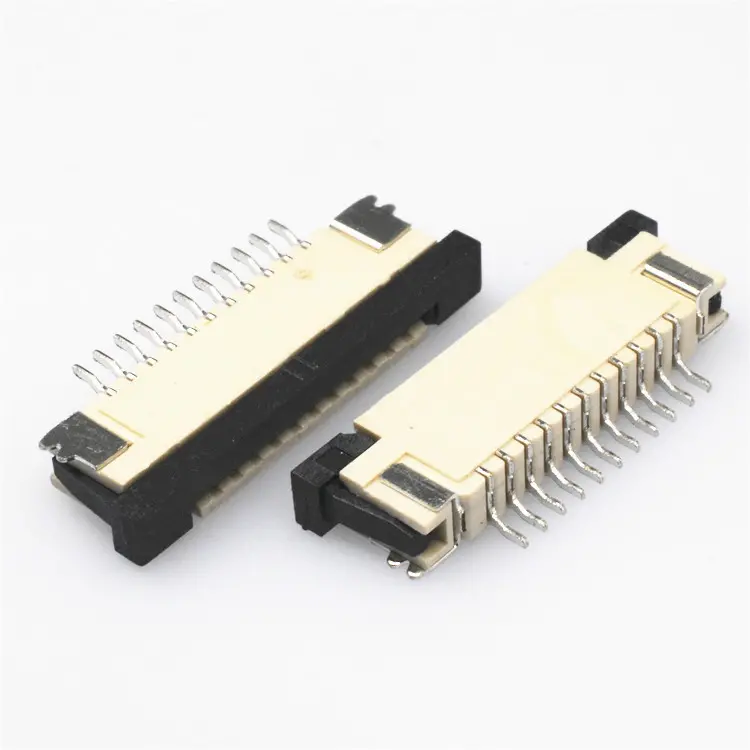

1.0mm ZIF SMT H2.5mm lower/upper contacts 4-35P FPC/FFC connector

Order Information
KLS1-1240D-2.5-XX-T-U-R
XX-No.of 04 ~ 35pin
T-Horizontal SMT
U-Upper Contact  L-Lower Contact
R-Reel     T-Tubes

Material:
Housing: LCP UL94V-0
Lock: LCP, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.5A
Rated voltage:50V
Withstand voltage:500V
Contact resistance:≤20mΩ
Insulation resistance:800MΩ
Operating Temperature: -20℃ To +85℃

KLS1-1240D-2.5.pdf
