1.0mm ZIF SMT H2.0mm lower/upper contacts FPC/FFC connector

Order Information

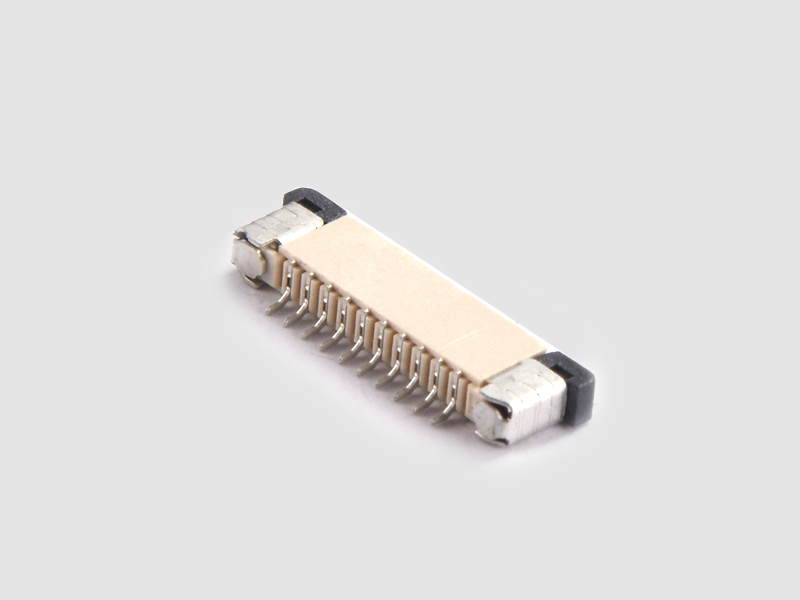

KLS1-240F-2.0-XX-T-U-R
XX-No.of 02 ~ 30pin
T-Horizontal SMT
U-Upper Contact
R-Reel     T-Tubes

Order Information

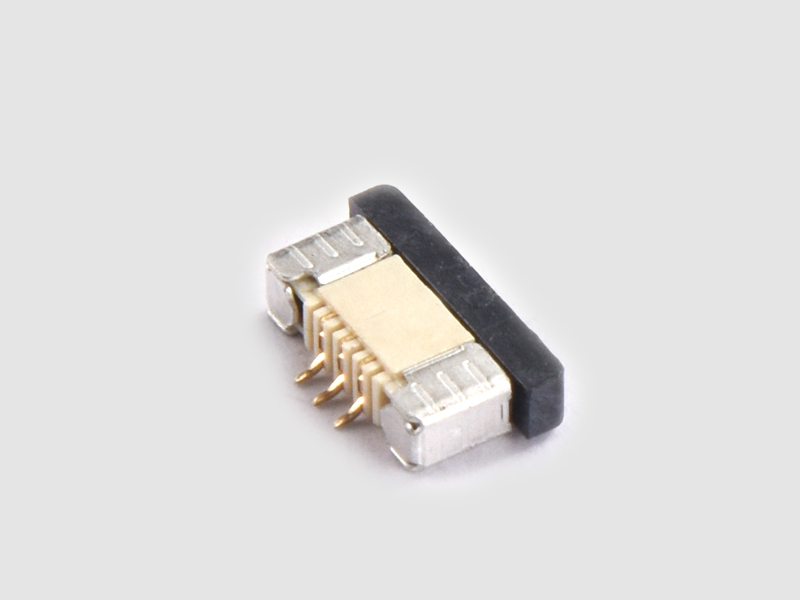

KLS1-240G-2.0-XX-T-L-R
XX-No.of 02 ~ 30pin
T-Horizontal SMT
L-Lower Contact
R-Reel     T-Tubes

Material:
Housing: LCP UL94V-0
Lock: LCP, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.5A
Rated voltage:50V
Withstand voltage:500V
Contact resistance:≤20mΩ
Insulation resistance:500MΩ
Operating Temperature: -20℃ To +85℃

KLS1-240F-2.0&KLS1-240G-2.0.pdf
