1.0mm ZIF SMT H1.2mm lower/upper contacts FPC/FFC connector

  • Model: KLS1-1240S-1.2 / KLS1-1240T-1.2
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

1.0mm ZIF SMT H1.2mm lower/upper contacts 6-60P FPC/FFC connector

Order Information

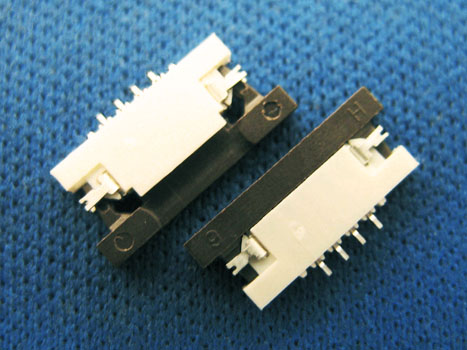

KLS1-1240S-1.2-XX-T-U-R
XX-No.of 04 ~ 30pin
T-Horizontal SMT
U-Upper Contact
R-Reel     T-Tubes

Order Information

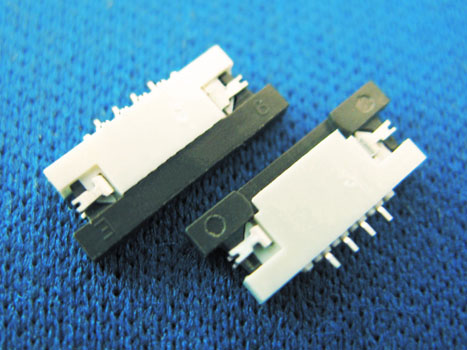

KLS1-1240T-1.2-XX-T-L-R
XX-No.of 04 ~ 30pin
T-Horizontal SMT
L-Lower Contact
R-Reel     T-Tubes

Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: Brass, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.3A
Rated voltage:50V
Withstand voltage:200V
Contact resistance:≤20mΩ
Insulation resistance:500MΩ
Operating Temperature: -20℃ To +85℃
