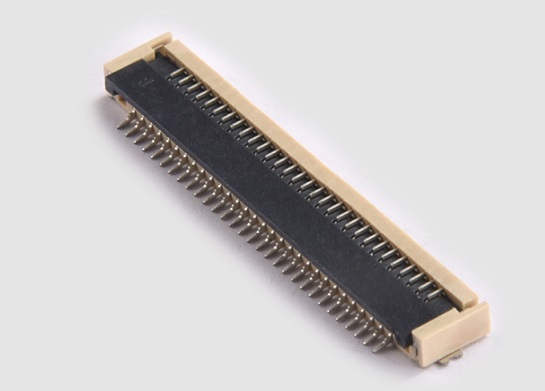

1.0mm zif-lock SMT H2.7mm Horizontal Type FPC/FFC connectors

Order Information

KLS1-240S-2.7-XX-T-R
XX-No.of 04 ~ 37pin
T-SMT Pin

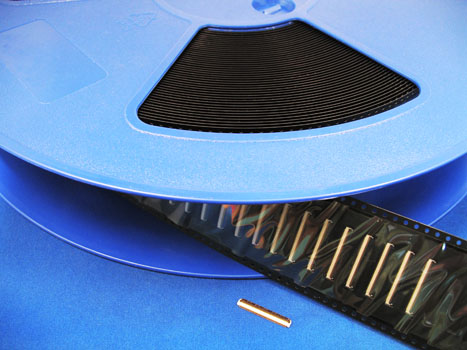

R- Reel Packing    T-Tube Packing

Material
Housing: LCP, UL94V-0
Contact: Phosphor Bronze,Tin plated

Electrical
Voltage rating: 50 V
Current rating: 0.5 A
Withstanding  Voltage: 500 V
Insulation resistance: 500MΩ.Min.
Contact resistance: 30 mΩ.max.

Mechanical
Temp. Range:   -40 ° C ~ + 85 ° C

KLS1-240S-2.7.pdf
