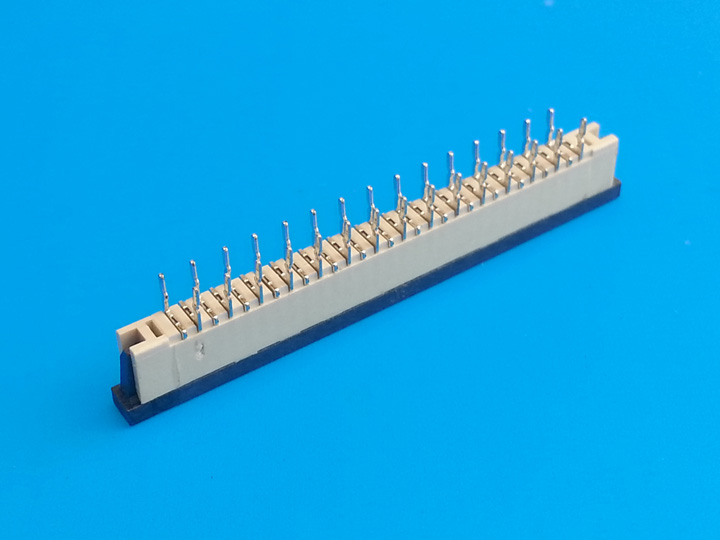

1.0mm Straight Pin zif-lock H5.4mm FPC/FFC connectors

  • Model: KLS1-1240E-XX-S
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

1.0mm Straight Pin zif-lock H5.4mm FPC/FFC connectors

Order Information
KLS1-1240E-XX-S-P-T
XX-No.of 02 ~ 35pin
S-Straight Pin
P-Positive needle   A-Anti-needle
T-Tube

Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.5A
Rated voltage:50V
Withstand voltage:500V
Contact resistance:≤20mΩ
Insulation resistance:800MΩ
Operating Temperature: -20℃ To +85℃
