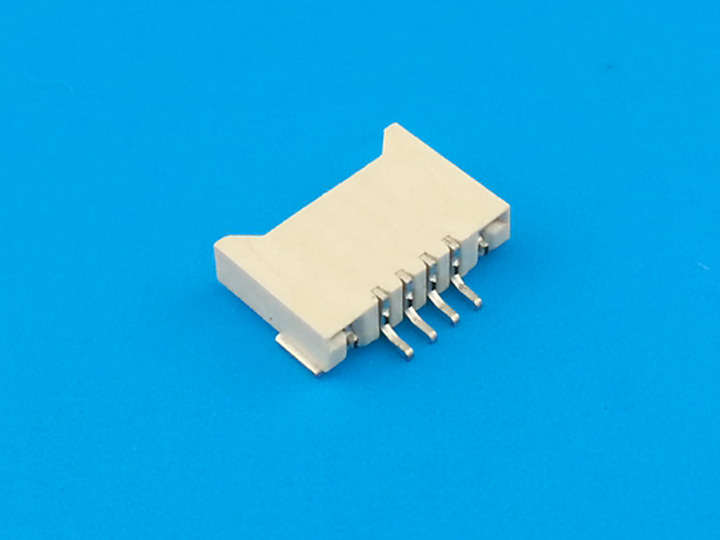

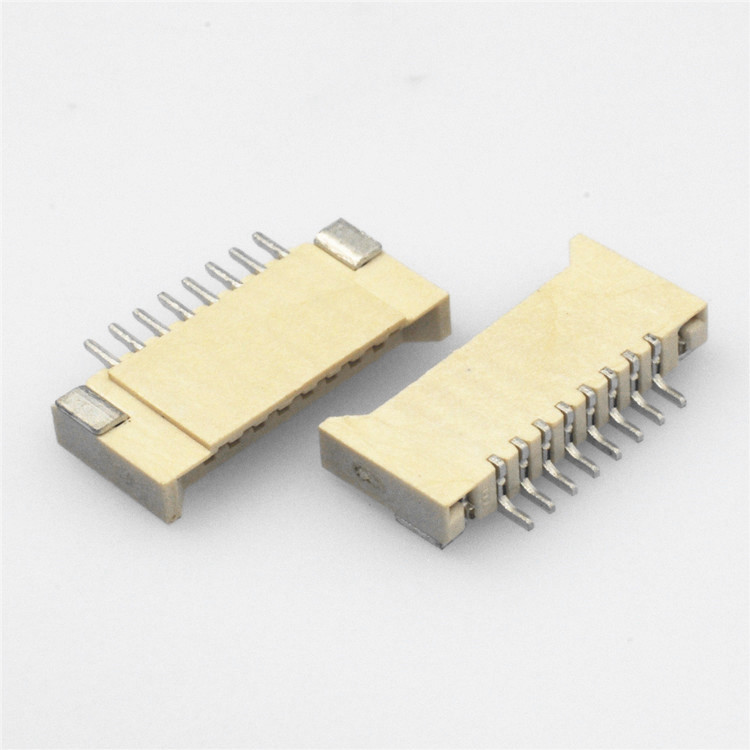

1.0mm SMT Double contact H2.0mm Horizontal Type

  • Model: KLS1-1240G-2.0
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

1.0mm FPC Horizontal SMT Double contact H2.0mm Type

Order Information

KLS1-1240G-2.0-XX-T-R
XX-No.of 04 ~ 32pin
T-SMT Pin
R- Reel Packing    T-Tube Packing

Material
Housing: LCP, UL94V-0
Contact: Phosphor Bronze,Tin plated

Electrical
Voltage rating: 50 V
Current rating: 1 A
Withstanding  Voltage: 200 V
Insulation resistance: 800MΩ.Min.
Contact resistance: 40 mΩ.max.

Mechanical
Temp. Range:   -40 ° C ~ + 85 ° C
