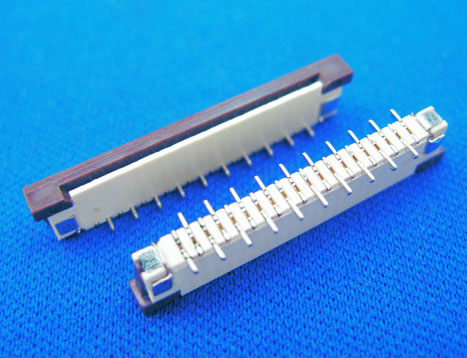

1.0mm fpc socket pcb smt 180 zif-lock H5.5mm FPC/FFC connectors

Order Information
KLS1-1240D-5.5-XX-T-P-R
XX-No.of 04 ~ 30pin
T-Vertical SMT
P-Positive needle   A-Anti-needle
R-Reel  T-Tubes
Material:
Housing: LCP UL94V-0
Lock: LCP, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 800M ohm Min
Contact resistance: 20m ohm. max.
Temperature range: -20℃ To +85℃

KLS1-1240D-5.5.pdf
