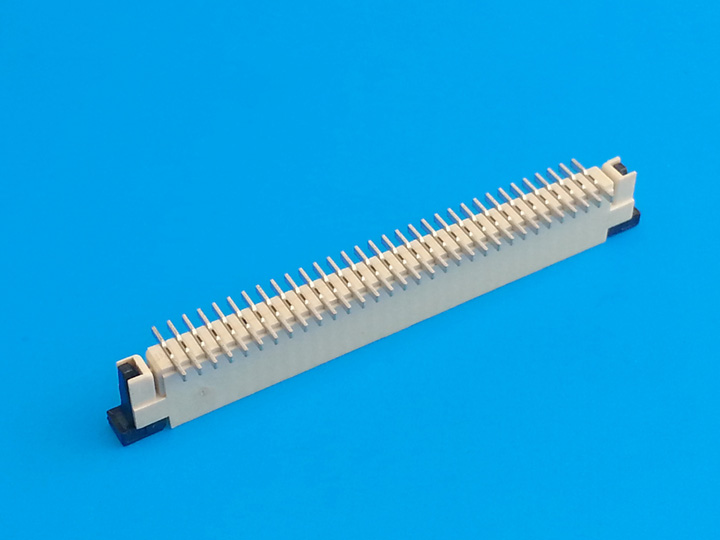

1.0mm fpc socket pcb smt 180 zif-lock H5.4mm FPC/FFC connectors

Order Information
KLS1-1240E-5.4-XX-T-R
XX-No.of 02 ~ 30pin
T-Vertical SMT
R-Reel T-Tubes

Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Gold/Tin Plated
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Withstandingf Voltage: 500 V
Insulation resistance: 800M ohm Min
Contact resistance: 20m ohm. max.
Temperature range: -40℃ To +105℃

KLS1-1240E-5.4.pdf
