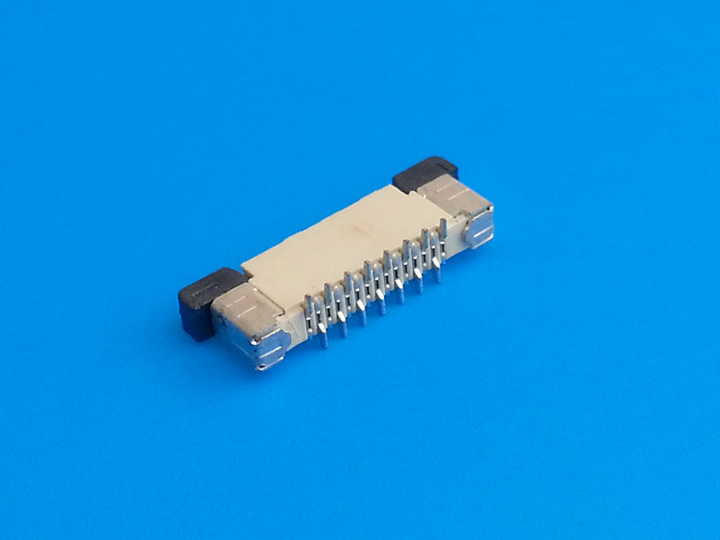

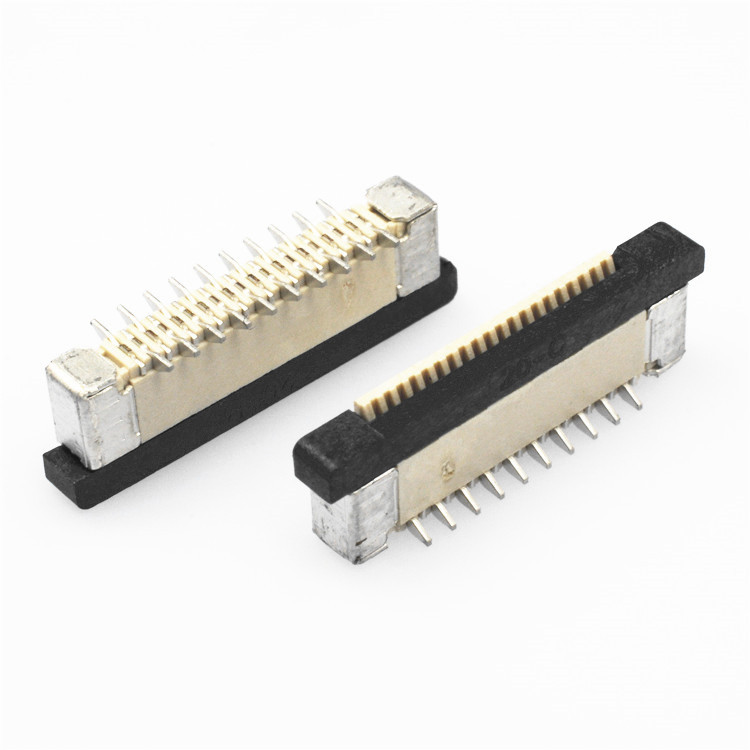

1.0mm fpc socket pcb smt 180 zif-lock H4.5mm FPC/FFC connectors

Order Information

KLS1-242E-4.7-XX-T-P-R
XX-No.of 02~30pin
T-Vertical SMT
P-Positive needle   A-Anti-needle
R-Reel  T-Tubes
Material:
Housing: LCP UL94V-0
Lock: LCP, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.4 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 20m ohm. max.
Temperature range: -20℃ To +85℃

KLS1-242E-4.7.pdf
