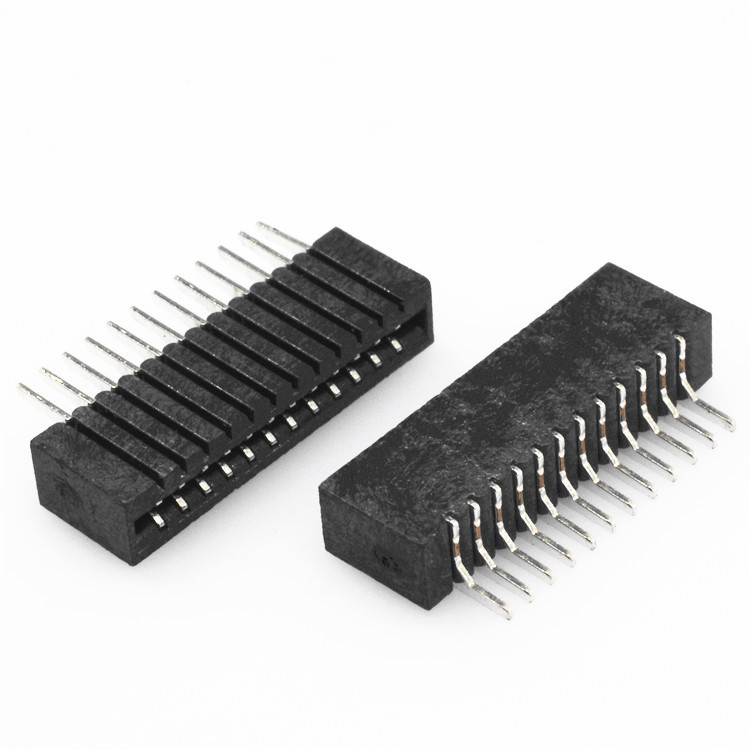

1.0mm SMD Dual Contact NO-ZIF H2.85mm FFC/FPC Connectors
- Product Details
1.0mm SMD Dual Contact NO-ZIF H2.85mm FFC/FPC Connectors
Order Information
KLS1-240C-XX-RT-R
XX-No.of 04 ~ 35pin
RT-SMT Pin
T-Tube packing R-Reel packing
Order Information
KLS1-240I-2.85-XX-R
XX-No.of 04 ~ 35pin
T-Tube packing R-Reel packing
Material:
Housing: LCP UL94V-0
Contact: Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Withstandingf Voltage: 500 Ｖ
Insulation resistance: 800Ｍ ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃
