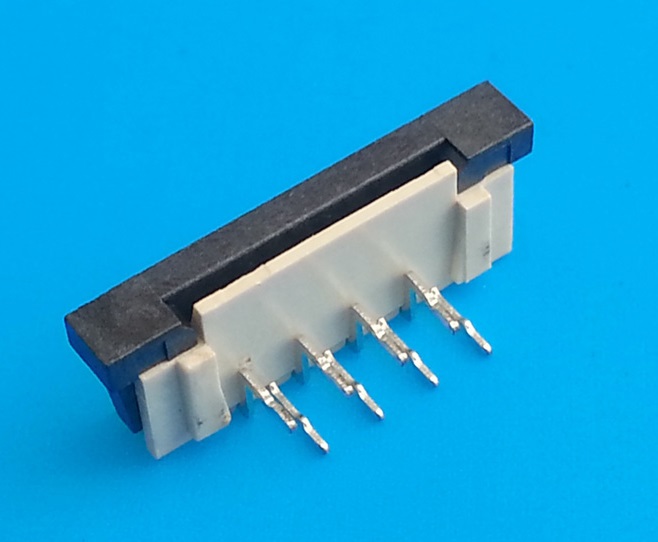

1.0mm Right Angle Pin zif-lock H2.5mm FPC/FFC connectors

Order Information
KLS1-1240E-2.5-XX-R-P-T
XX-No.of 02 ~ 30pin
R-Right Angle Pin
P-Positive needle   A-Anti-needle
T-Tube

Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.5A
Rated voltage:50V
Withstand voltage:500V
Contact resistance:≤20mΩ
Insulation resistance:800MΩ
Operating Temperature: -20℃ To +85℃

KLS1-1240E-2.5-XX-R.pdf
