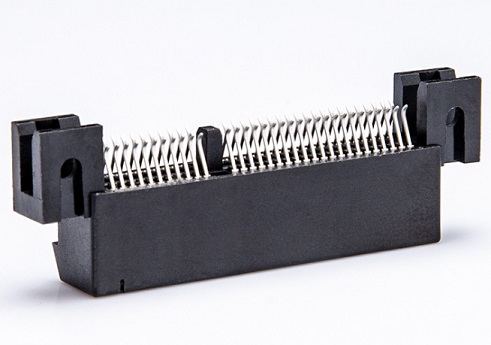

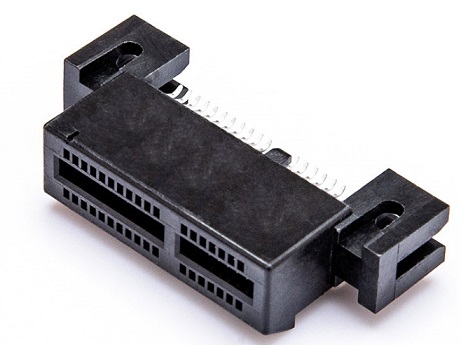

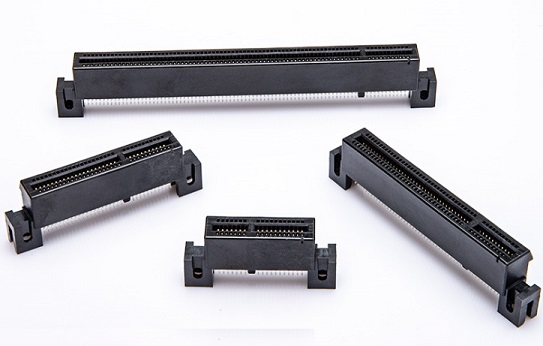

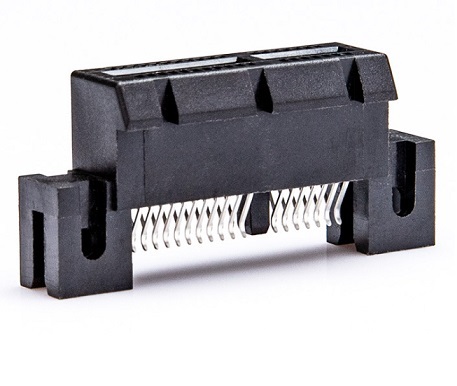

1.0mm Pitch PCI-Express Card Connector Splint Type 36P 64P 98P 164P

Order Information
KLS1-PCIE02C-XX-B-G1U-A
XX-No.of 36-164pins
B-Black G-Green O-Orange L-Blue W-White
Plating:1u”Gold ~30u” Gold G1U=Gold 1u” G30U=Gold 30u”
A-Tube C-Tray E-Box

Material:
Housing: PBT/PA66,UL94V-0
Contact: Brass
Plating: Gold Plating Over Nickel.

Mechanical
Insertion Forge: 1.15N Max Per Contact Pair
Withdrawal Force: 0.15N Min per contact pair
Contact Retention Force: 4.9N Min Per Contact,

Electrical Specification:
Current Rating: 1.0 AMP
Contact Resistance: 30M Ohm max
Insulator Resistance: 1000M Ohm min. at DC 500V DC
Operating Temperature: -45ºC~+105ºC
