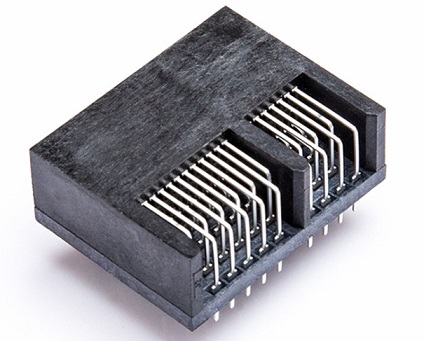

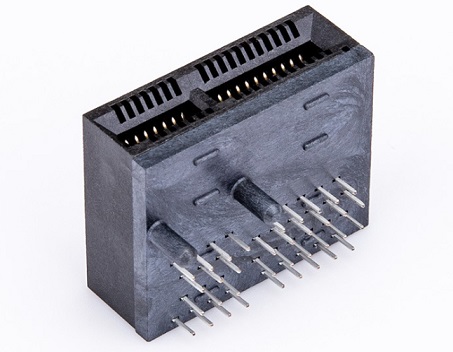

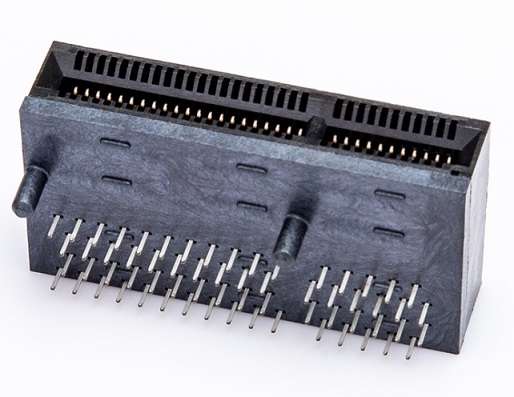

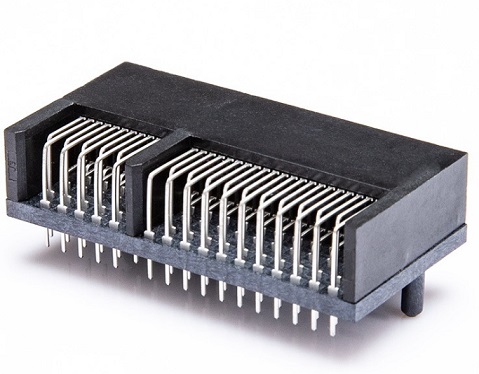

1.0mm Pitch PCI-Express Card Connector Right Angle Type 36P 64P 98P 164P 280P

Order Information
KLS1-PCIE04-XX-B-G1U-E
XX-No.of 36-280Ppins
B-Black G-Green O-Orange  L-Blue W-White
Plating:1u”Gold ~30u” Gold G1U=Gold 1u”   G30U=Gold 30u”
A-Tube  C-Tray  E-Box

Material:

Housing: PBT/PA66,UL94V-0
Contact: Brass
Plating: Gold Plating Over Nickel.

Mechanical

Insertion Forge:  1.15N Max Per Contact Pair
Withdrawal Force: 0.15N Min per contact pair
Contact Retention Force: 4.9N Min Per Contact,

Electrical Specification:

Current Rating: 1.0 AMP
Contact Resistance: 30M Ohm max
Insulator Resistance: 1000M Ohm min. at DC 500V DC
Operating Temperature: -45ºC~+105ºC
