1.0mm Pitch Male Pin Header Connector Plastic Height: 1.0mm , 1.5mm

Order Information
KLS1-207G-1.00-1-XX-S-L1*L2*L3-G0
Plastics Height:1.00、1.50mm

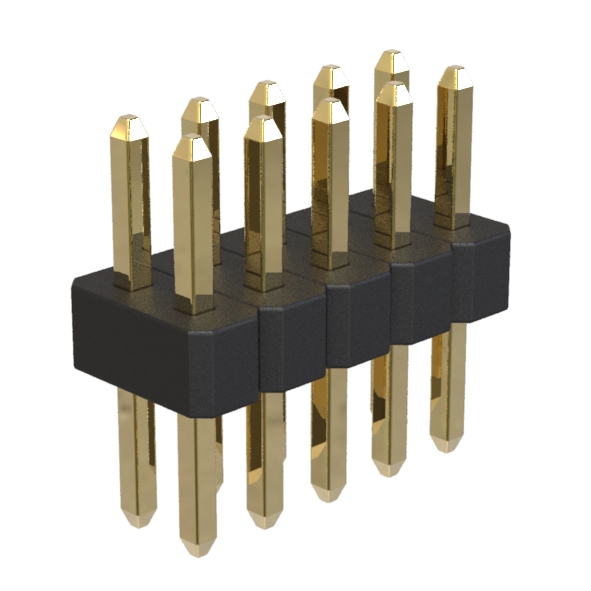

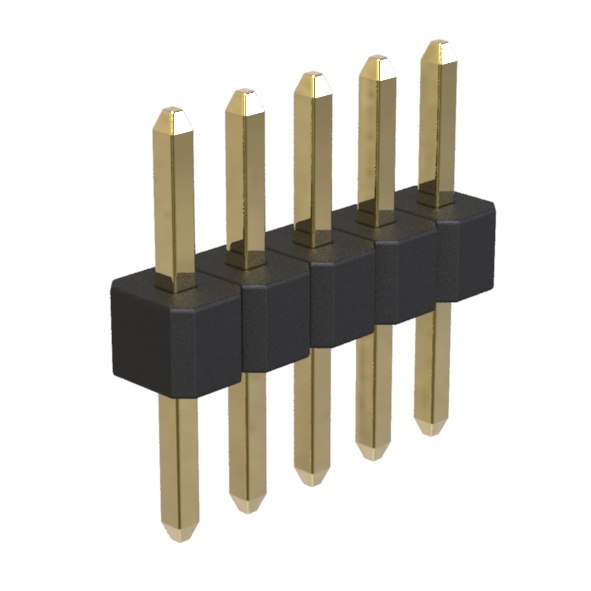

1-Single layer  2-Double layer
XX-Total pin number  (No.of 2~100pin)

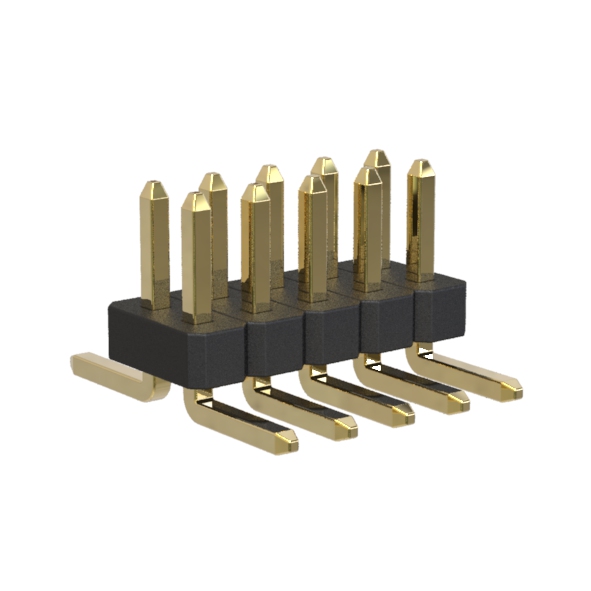

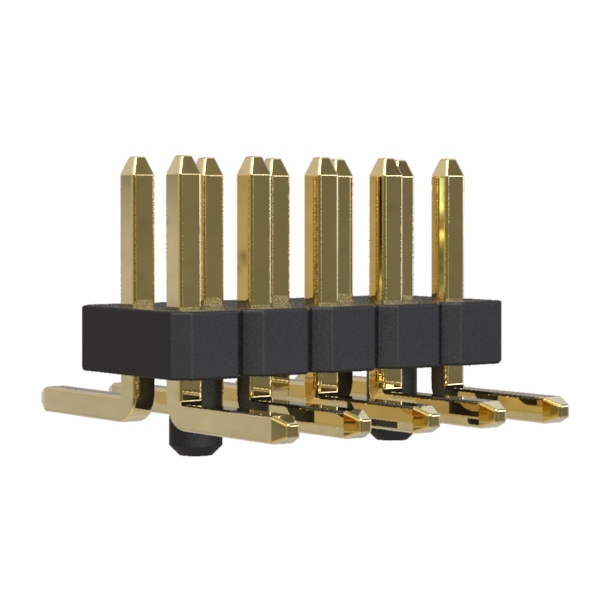

S-Straight Pin  R1 R2-Right Angle Pin  T T1 T2 T3-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash   G1=1u” Gold  G10=10u” Gold  G15=15u” Gold   G30=30u” Gold

Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u” over 50u” nickel
Electrical Characteristics:
Current Rating: 0.75 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 30m Ohm max.
Operating Temperature: -45ºC~+105ºC

KLS1-207G.pdf
