1.0mm Pitch Female Header Connector Height 2.0mm

  • Model: KLS1-208F-2.0
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

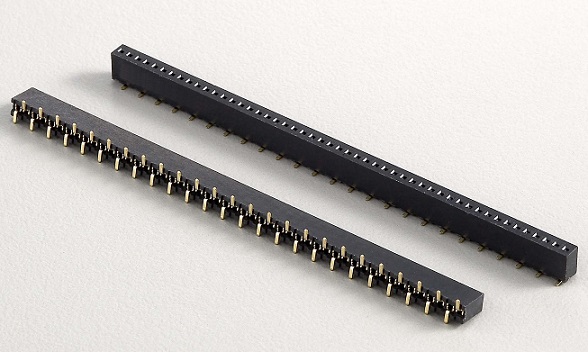

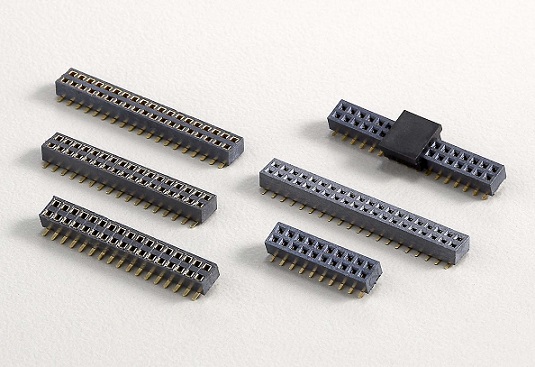

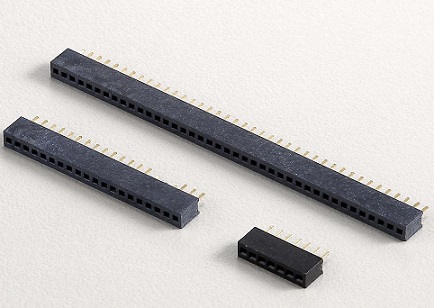

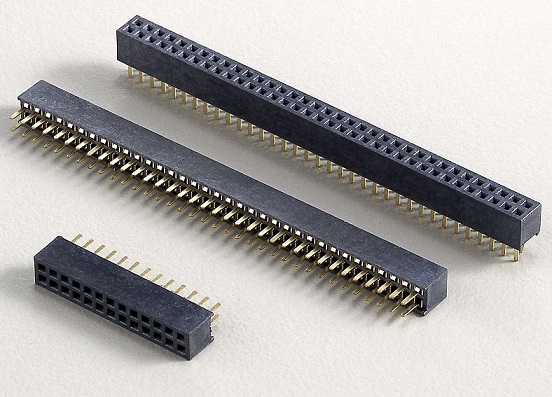

1.00mm Pitch Female Header Connector Height 2.0mm

Order Information
KLS1-208F-2.0-2-XX-S-B
Height: 2.0mm
1-Single layer   2-Double layer
XX-Total pin number  (No.of 2~100pin)
S-Straight Pin  T-SMT Pin
Material_B=PA6T  C=LCP

Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 0.75 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 30mΩ Max
Operating Temperature: -40ºC~+105ºC
