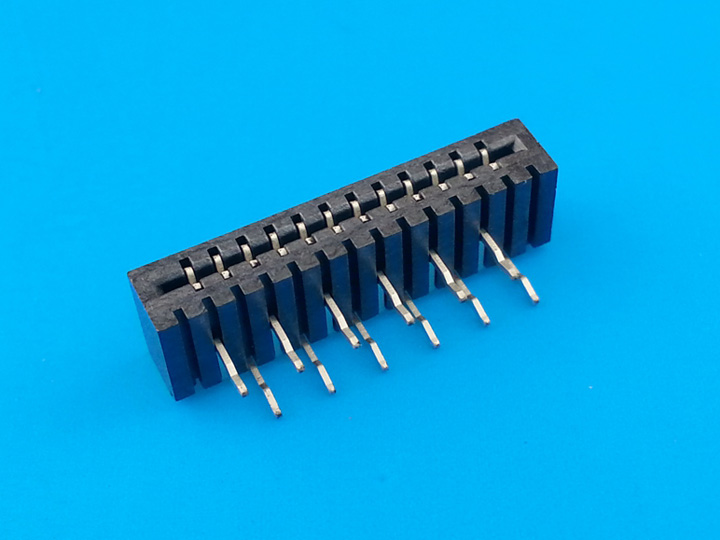

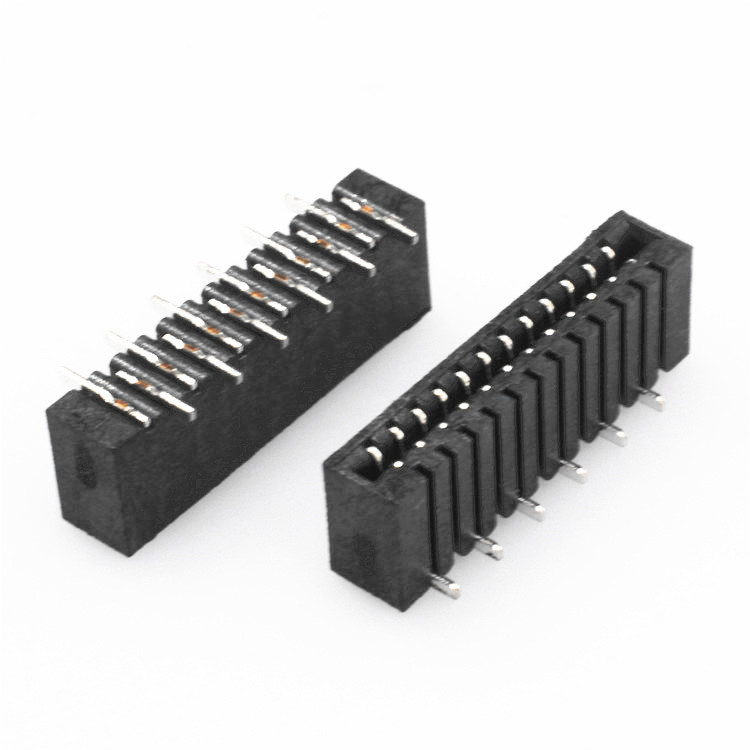

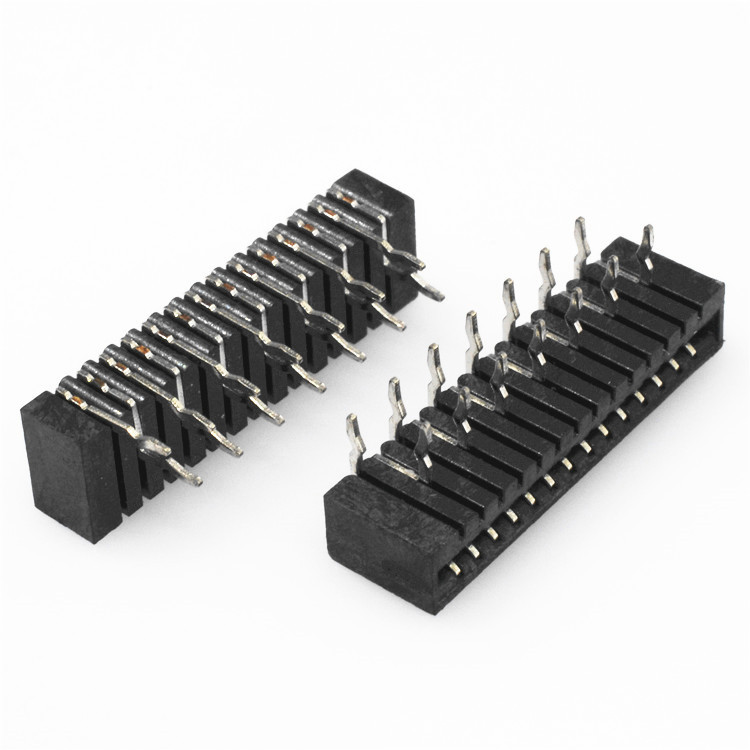

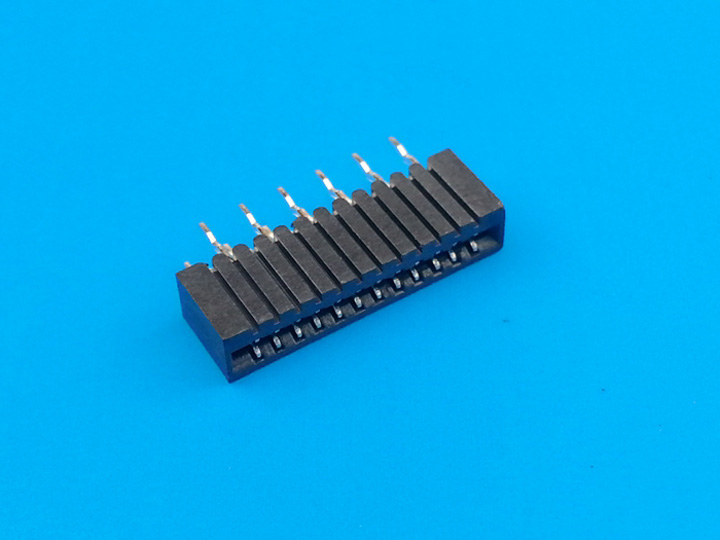

1.0mm Dual Contact NO-ZIF Type H4.4mm FFC/FPC Connectors

Order Information
KLS1-240B-XX-T-B-PT
XX-No.of 04 ~ 35pin
S-Straight Pin  R-Right Angle Pin   T-SMT Pin
B-Black
P-Positive needle   A-Anti-needle
T-Tubes    R-Reel( Only SMT with MYLAR)
Material:
Housing: LCP UL94V-0
Contact:  Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Withstandingf Voltage: 500 Ｖ
Insulation resistance: 800Ｍ ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃
