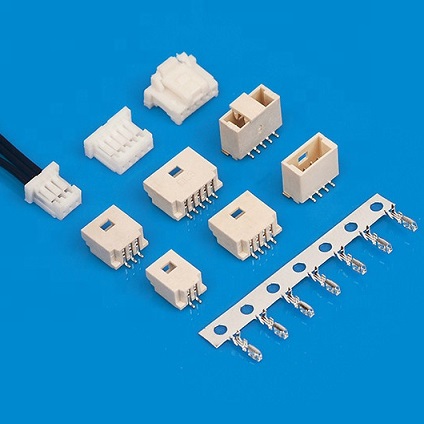

1.00mm Pitch MOLEX 501330 501331 501568 wire to board connector

Order information:
KLS1-XF6-1.00-XX-H
Pitch:1.00mm
XX-No.of 02~15 pins
H-Housing  VM-Vertical SMT Pin  RM-Horizontal SMT Pin   T-Terminal

Specifications
◆Material: PA66 or LCP UL 94V-0,Natural
◆Contact : Phosphor Bronze
◆Plating : Plated Tin over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.

KLS1-XF6-1.00.pdf
