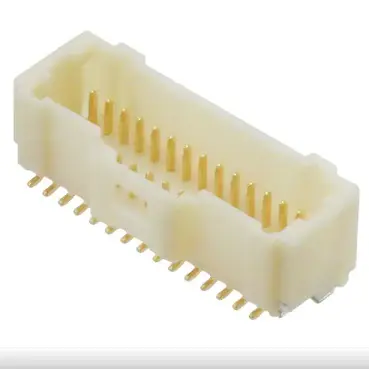

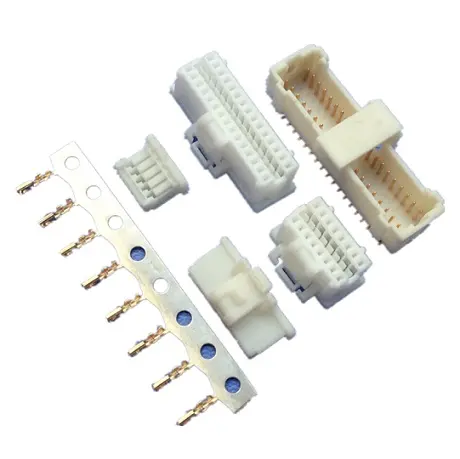

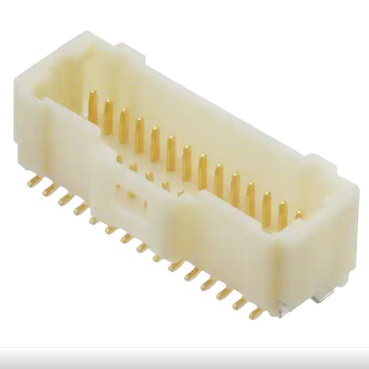

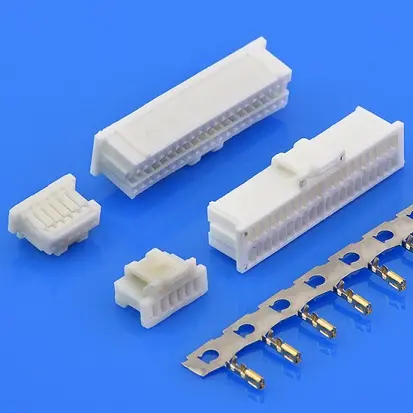

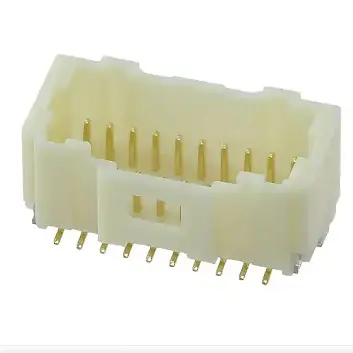

1.00mm Pitch MOLEX 501189 501190 wire to board connector

Order information:
KLS1-XF13-1.00-XX-H
Pitch:1.00mm
XX-Pin numbur:04~50 pins
H-Housing  VM-Vertical SMT Pin    T-Terminal

Specifications
◆Material: PA46 or PA6T UL 94V-0,Natural
◆Contact : Phosphor Bronze
◆Plating : Plated Gold over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:250V AC minute
◆Contact resistance:20mΩ Max.

KLS1-XF13-1.00.pdf
