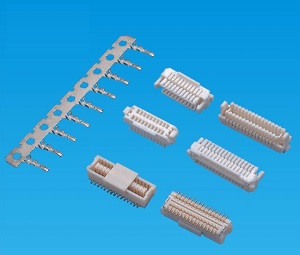

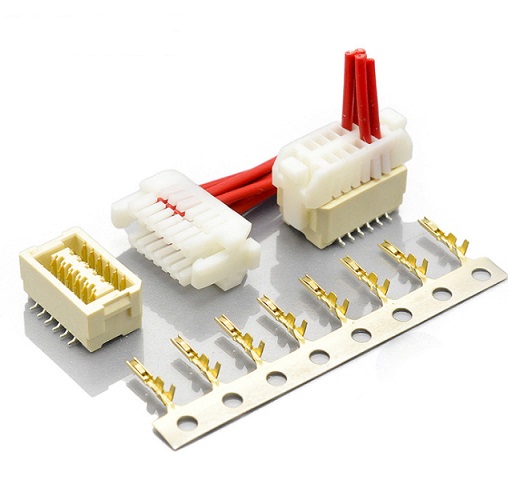

1.00mm Pitch JST SHLD Type wire to board connector

Order information:
KLS1-XF3-1.00-XX-H
Pitch:1.00mm
XX-No.of 06~50 pins
H H2-Housing  T-Terminal  VM-SMT Straight Male pin

Specifications
◆Material: PA66 or LCP UL 94V-0,Natural
◆Contact : Copper alloy
◆Plating : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:500MΩ Min.
◆Withstanding voltage:300V AC minute
◆Contact resistance:55mΩ Max.

KLS1-XF3-1.00.pdf
