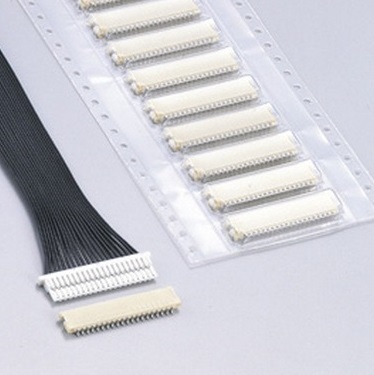

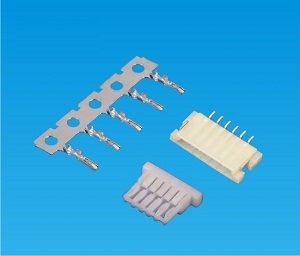

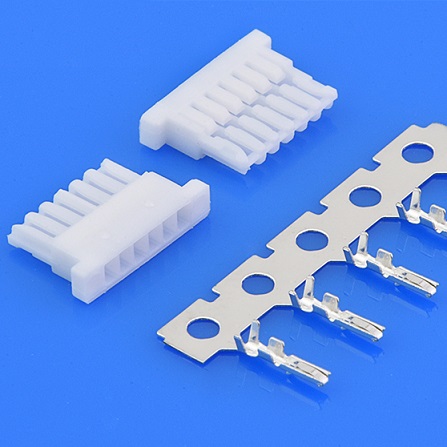

1.00mm Pitch JST SHL wire to board connector

  • Model: KLS1-XF8-1.00
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

1.00mm Pitch JST SHL wire to board connector

Order information:
KLS1-XF8-1.00-XX-H
Pitch:1.00mm
XX-Pin numbur:02~30 pins
H-Housing   RM-Horizontal SMT Pin   T-Terminal

Specifications
◆Material: PA66 or PA9T UL 94V-0,Natural
◆Contact : Phosphor Bronze
◆Plating : Plated Tin over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.
