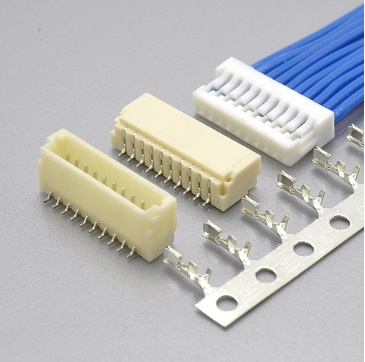

1.00mm Pitch JST SH SHR Type wire to board connector Single layer
- Product Details
1.00mm Pitch JST SH SHR Type wire to board connector
Order information:
KLS1-XF1-1.00-1-XX-H
Pitch:1.00mm
1-Single layer
XX-No.of 02~20 pins
H H2-Housing T-Terminal RM-SMT Right Angle Male pin VM-SMT Straight Male pin
Specifications
◆Material: PBT or PA9T UL 94V-0
◆Contact : Phosphor Bronze
◆Plating : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.
