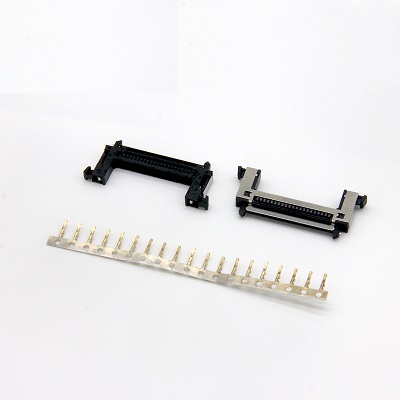

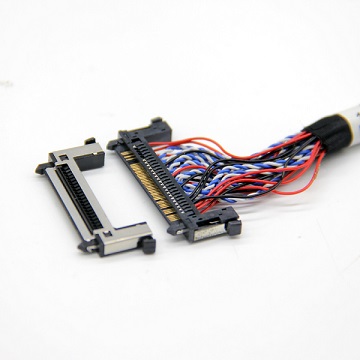

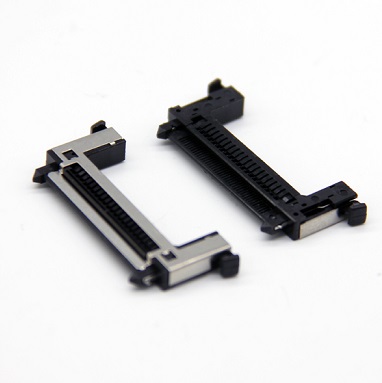

1.00mm Pitch JAE FI-E wire to board connector
- Product Details
1.00mm Pitch JAE FI-E wire to board connector
Order information:
KLS1-XF10-1.00-XX-H1
Pitch:1.00mm
XX-Pin numbur 30 pins
H1-Without lock Housing H2-With lock Housing RM-Horizontal SMT Pin T-Terminal
Specifications
◆Material: PA46 or LCP UL 94V-0
◆Contact : Phosphor Bronze
◆Pin Plating : Plated Gold over Nickel
◆Shell Plating : Tin Plated
◆Current rating:1.0A AC,DC
◆Voltage rating:200V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:40mΩ Max.
