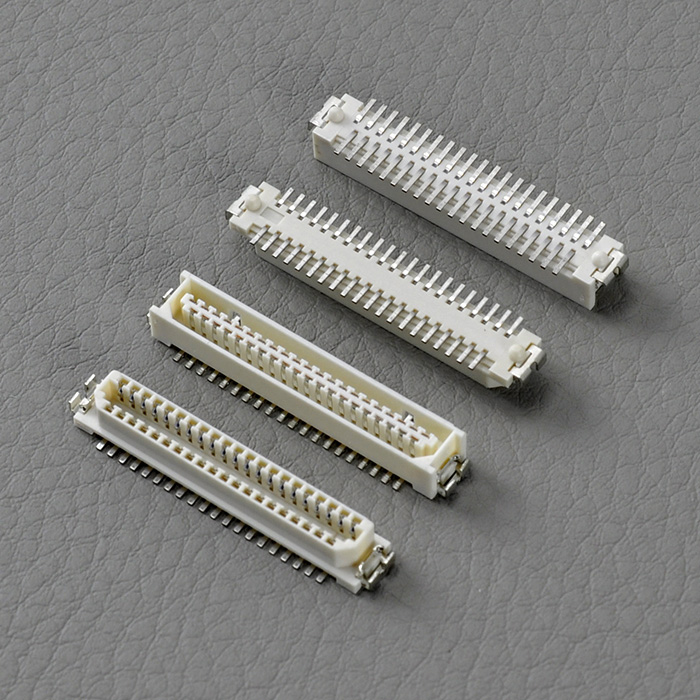

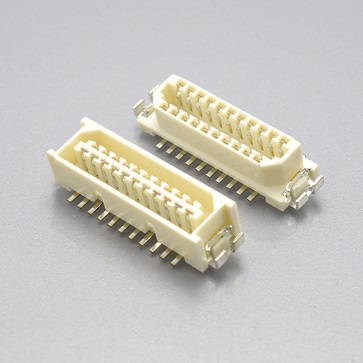

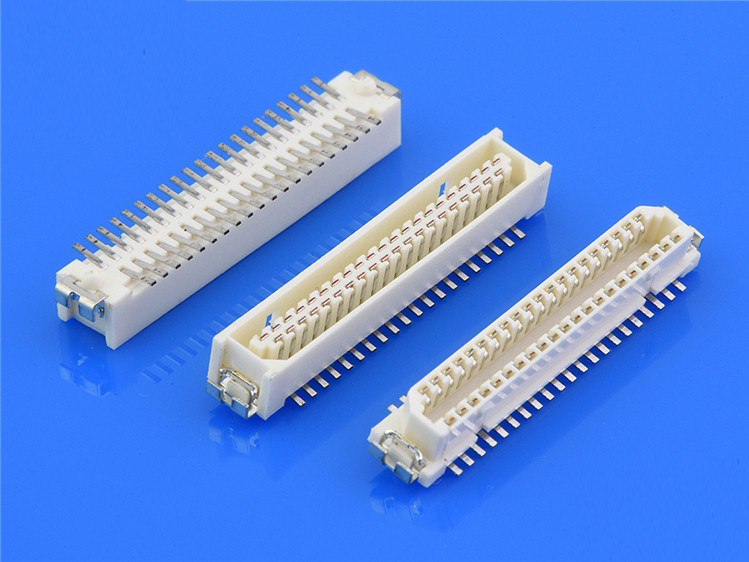

1.00mm Pitch HRS DF9 type Board to Board Connector

  • Model: KLS1-3721
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

1.00mm Pitch HRS DF9 type Board to Board Connector

Order information:
KLS1-3721-XX-M
XX-No.of 21 31 41 51pins
M-Male pin   F-Female pin

Electrical Specification:
Electrical Rating:AC/DC 150V 0.5A
Insulation Resistance:500MΩ
Contact Resistance:50mΩ Max
Withstand Voltage:250V AC/minute
Operating Temperature:-40ºC~+105ºC
Material:
Housing:Nylon 46 UL94V-0
Contacts: Phosphor Bronze
