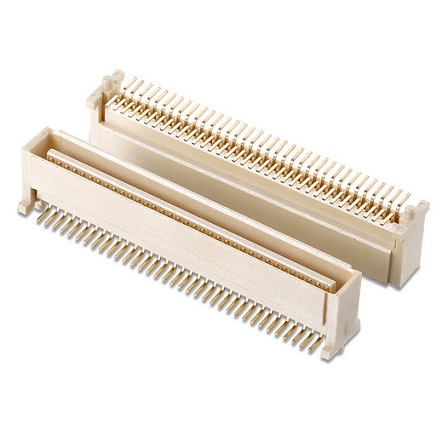

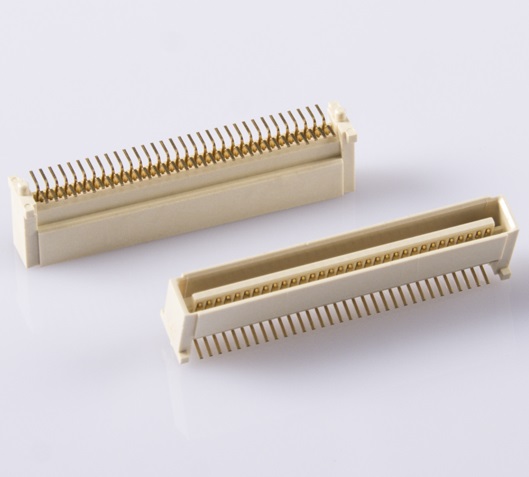

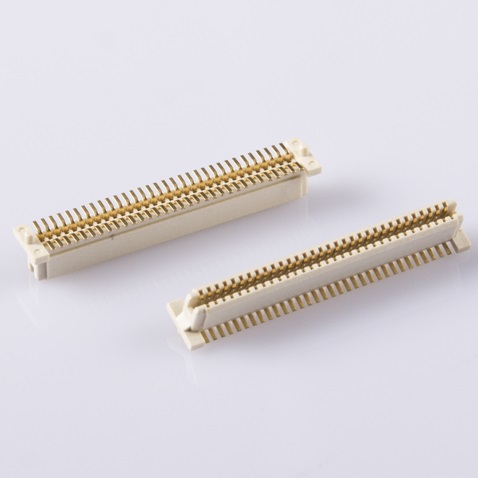

1.00mm Pitch Board to Board Connector

Material:
Insulator: High-Temp.Plastic,(LCP,UL94V-0),
Color: Natural
Conact: Phosphor Bronze,Gold Plated.

Specification:
1.Contact resistance: 30mΩ Max.
2.Insulation resistonce: 1000MΩ Min
3.Rated voltage: 250V AC DC.
4.Rated current: 1.0A AC DC.
5.Withstand Voltage: 250V AC/Minute.
6 Temperature Range: -40°C~+ 85°C.

KLS1-B0210.pdf
