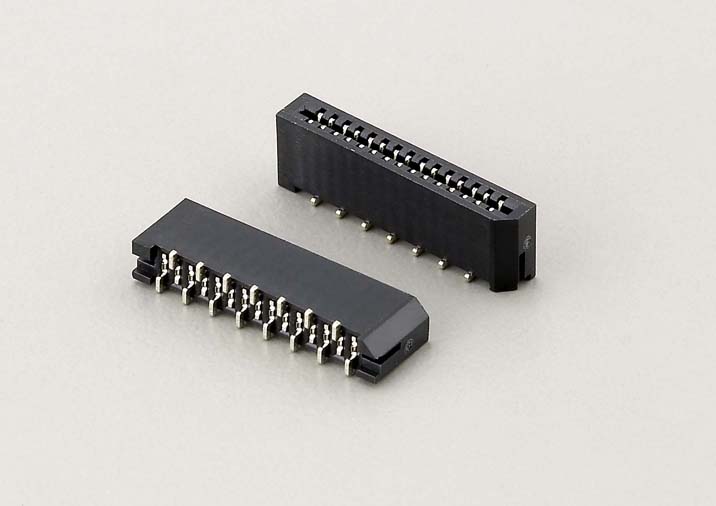

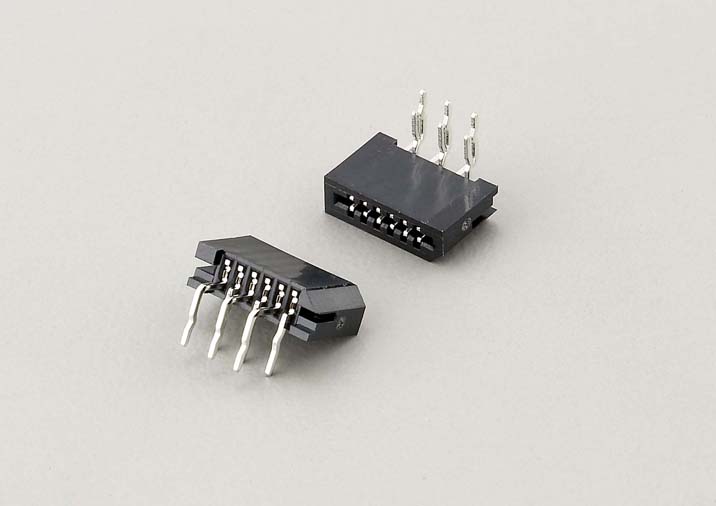

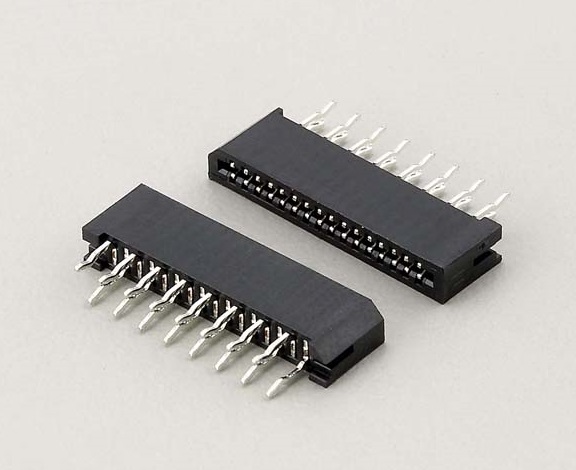

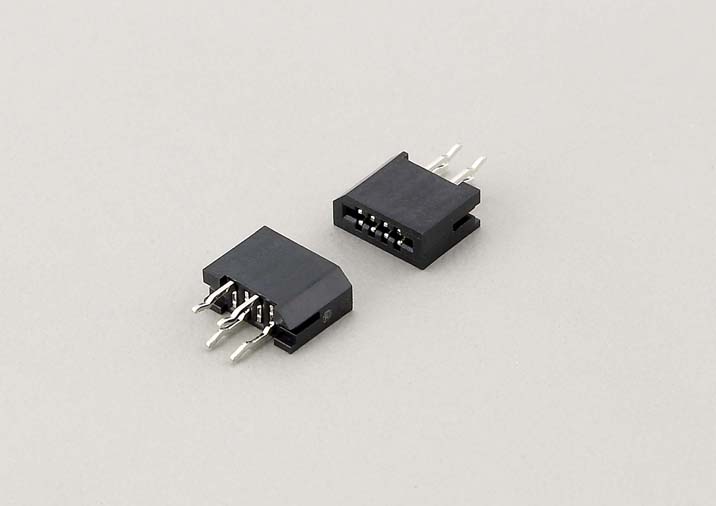

1.00mm Dual Contact NO-ZIF Type H5.5mm FFC FPC Connectors

Order Information
KLS1-1240B-XX-S-B-P-T
XX-No.of 04 ~ 32pin
S-Straight Pin R-Right Angle Pin T-SMT Pin
B-Black
P-Positive needle A-Anti-needle
PACK: T-Tube R-Reel

Material
Housing:PA9T, UL94V-0
Terminal:Phosphor Bronze
Plating: Tin/Lead Plated Over Nickel
Electrical
Voltage rating: 50 V
Current Rating: 0.4 A
Withstanding Voltage: 200 V
Insulation resistance: 500MΩ.Min.
Contact resistance: 20 mΩ.Max.
Mechanical
Temp. Range: -25 ° C ~ + 85 ° C
